CM260H High-Temperature Fast Solidification Powder

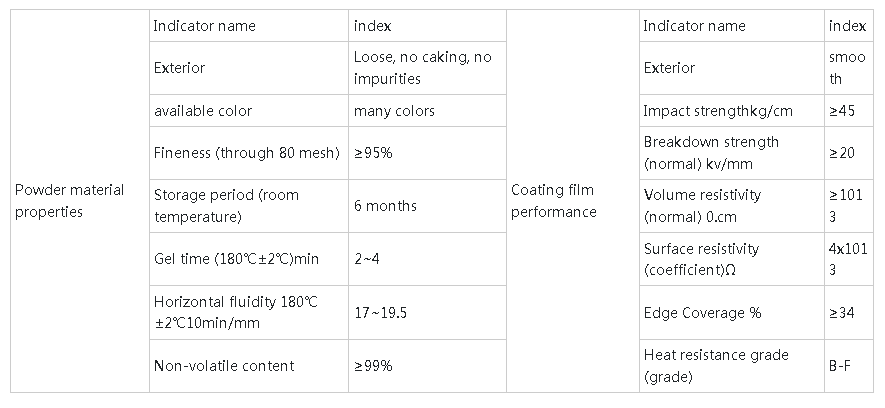

Performance characteristics

It has bright colors, excellent electrical performance, moisture resistance, rapid curing performance, excellent resistance to cold and hot deformation, cutting penetration, good edge coverage, and the advantages of reducing motor temperature rise, increasing slot capacity, simplifying winding process to ensure product quality, improving production efficiency, and achieving mechanical assembly line operation

Purpose

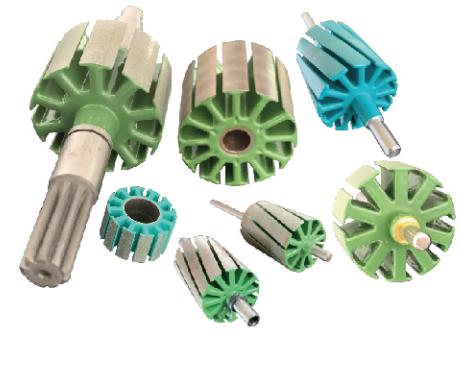

Insulation coating for various DC motors, motors, magnetos, and other rotors, iron core slots, and iron core ends.

Coating process

Using electrostatic fluidized bed coating method and high-frequency automatic rapid coating method.

Product Certification

The product has passed UL certification in the United States and meets the requirements of the EU RoHS environmental protection directive; Through SVHC high concern substance detection.

Packing

Packaged in high-quality round paper tubes, lined with high-pressure polyethylene bags. 25 kilograms per barrel. Indoor storage, ventilated and dry.
