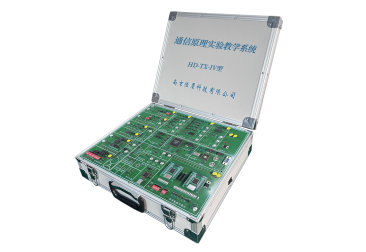

Experimental Teaching System for Communication Principles

Product Introduction
The course "Principles of Communications" is one of the most important professional foundation courses in the fields of communications, electronics, and information. The experimental platform can be used as a teaching platform for communication engineering, electronic information, computer communications, etc. in colleges and universities. It focuses on the generation, transmission, and demodulation technologies and testing methods of various communication signals in communication systems, so that students can quickly master and become familiar with the basic theories and concepts of communication systems .






Features
1. Adopting modern open design concept, it integrates verification experiment and autonomous experiment, and the secondary development experiment function is more powerful and more adaptable to user requirements.
2. It comes with analog signal source and clock/digital signal source, built-in power supply +5V, +12V, -12V, no external power supply is required.
3. The comprehensive experimental functions between the experimental box modules are powerful. A single experimental box can realize simplex communication; two experimental boxes can realize duplex communication. At the same time, it can also complete networking and various signal optical fiber transmission and module digital exchange experiments between optical fibers and program-controlled switches.
4. The experimental box is equipped with communication E1 interface, 2M interface, and RS232 interface, which can complete communication experiments between PC and experimental system.






Experimental courses can be offered
Experiment 1: Amplitude Shift Keying (ASK) Modulation and Demodulation Experiment
Experiment 2: Analog Modulation and Demodulation: AM, Single Sideband (SSB), Double Sideband (DSB)
Experiment 3: Analog Modulation and Demodulation: FM
Experiment 4: Channel Simulation Experiment: White Noise Experiment
Experiment 5: Testing the waveforms of various analog signals
Experiment 6: Measuring the Waveform of a Tone Signal
Experiment 7: Familiarize yourself with the waveforms of each measurement point of the CPLD programmable signal generator
Experiment 8: Measure and analyze the waveforms and data at each measurement point
Experiment 9: Learning the programming operation of CPLD programmable devices
Experiment 10: Communication channel terminal sending experiment
Experiment 11: Communication Channel Terminal Receiver Filter Experiment
Experiment 12: Sampling Theorem Experiment
Experiment 13: 555 clock generator experiment
Experiment 14: Pulse Amplitude Modulation (PAM) and System Experiment
Experiment 15: Incremental Modulation CVSD (M) Encoding Experiment
Experiment 16: Comparison of M encoding and decoding when the working clock is variable
Experiment 17: Observing A-Law PCM 8-bit Encoding Using a Synchronous Simple Signal
Experiment 18: Pulse Code Modulation (PCM) and System Experiment
Experiment 19: PCM coding time division multiplexing timing analysis experiment
Experiment 20: Basic Phase-Locked Loop Experiment
Experiment 21: Bandwidth measurement of synchronous belt and catch belt
Experiment 22: Phase-locked digital frequency synthesizer experiment
Experiment 23: Two-phase BPSK modulation and demodulation experiment
Experiment 24: PSK demodulation carrier extraction experiment
Experiment 25: Bit Timing and Bit Synchronization Extraction Experiment
Experiment 26: Signal Code Regeneration Experiment
Experiment 27: Eye Diagram Observation and Analysis Experiment
Experiment 28: Simulated Eye Diagram Observation and Measurement Experiment
Experiment 29: Frequency Shift Keying (FSK) Modulation Experiment
Experiment 30: AMI/HDB3 code conversion coding observation experiment
Experiment 31: Ideal Channel Simulation Experiment
Experiment 32: Bit Error Rate Test of PSK Channel
Experiment 33: Channel Error Test
Experiment 34: Comprehensive Experiment on Speech Signals and Communication System Principles
Experiment 35: Single Experiment Box to Implement Simplex Communication System Experiment
Experiment 36: Two experimental boxes realize duplex communication system experiment
