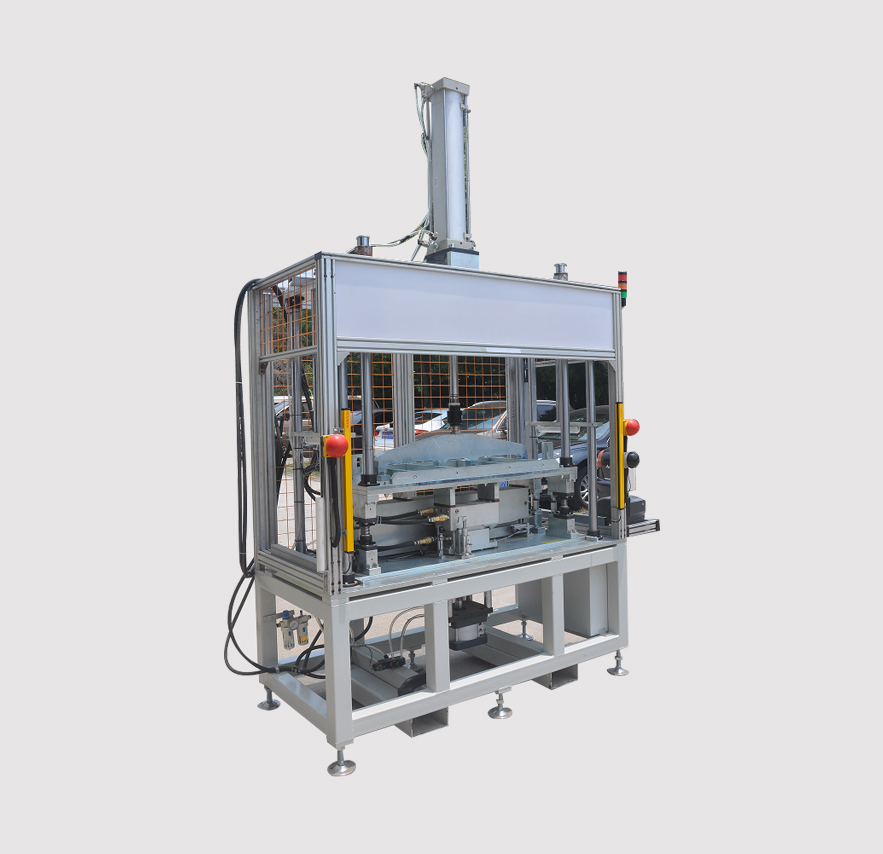

Specification

Device model: single-machine customization

Applicable parts: special aircraft

Equipment size: Length 2600mm X width 1400mm X height 2000mm(single machine)

Equipment weight: 2000KG

Working time: 145S/ piece

Outer frame: square button + aluminum profile

Tooling body: 6061+T6 aluminum alloy, POM, 45#

Cylinder: Airtek, SMC, Festo (optional)

Electronic components: Domestic (optional)

PLC: Siemens, Mitsubishi, Delta (optional)

Working air pressure: 0.4-0.8MPa

Power supply voltage: AC380 50HZ

Rated power: 13KW

Working voice: < 72db

Other: Special aircraft equipment, can be customized.

Features:

1. Quickly locate the epidermis.

2, mold heating, pressing parts and skin, activate the glue.

peculiarity

1, stable positioning, easy to take parts.

2, the temperature is adjustable, the pressure height is adjustable, the walking speed is adjustable.

3, the tool is equipped with electronic control system, can be MES connection, network control, detection information local storage.
