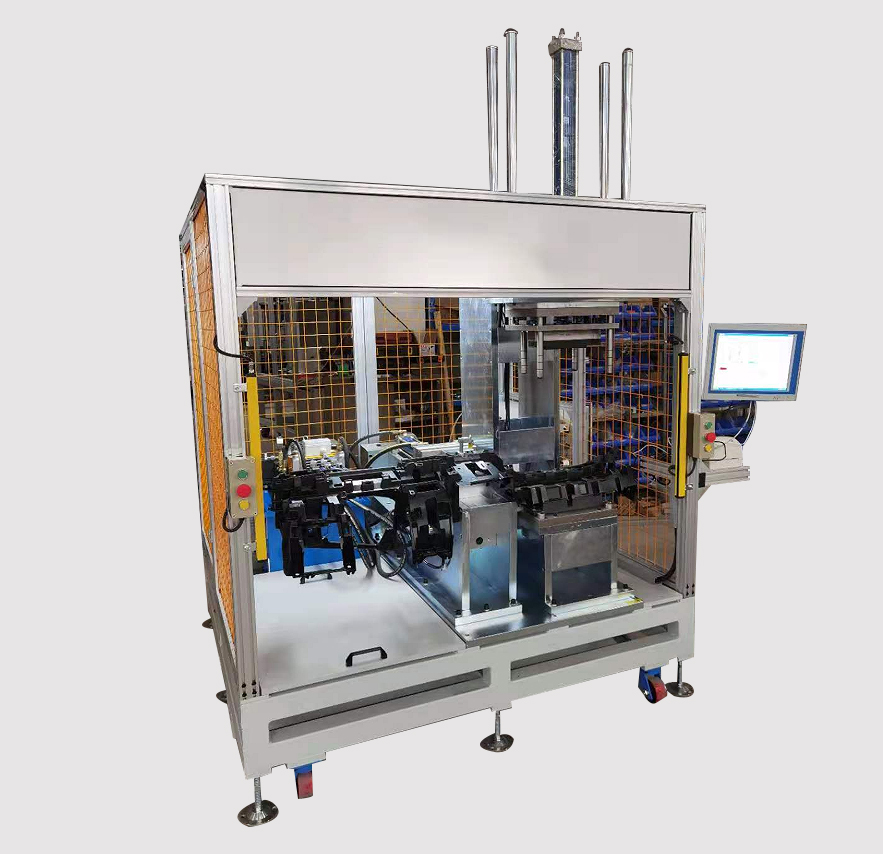

Specification

Device model: single-machine customization

Applicable parts: special aircraft

Device size: L 1800mm X W 1800mm X H 2600mm(single machine)

Equipment weight: 3000KG

Working beat: 90S/ piece

Outer frame: square pipe welding + aluminum profile

Tooling body: 6061+T6 aluminum alloy, POM, 45#

Cylinder: Airtek, SMC, Festo (optional)

Electronic components: Domestic (optional)

PLC: Siemens, Mitsubishi, Delta (optional)

Working air pressure: 0.4-0.8MPa

Power supply voltage: AC380 50HZ

Rated power: 5KW

Working voice: < 72db

Other: Special aircraft equipment, can be customized.

Features:

1. Quickly locate the epidermis.

2, cylinder punching parts, one molding.

peculiarity

1, stable positioning, easy to take parts.

2, the lower pressure height is adjustable, the walking speed is adjustable.

3, the tool is equipped with electronic control system, can be MES connection, to achieve network control.
