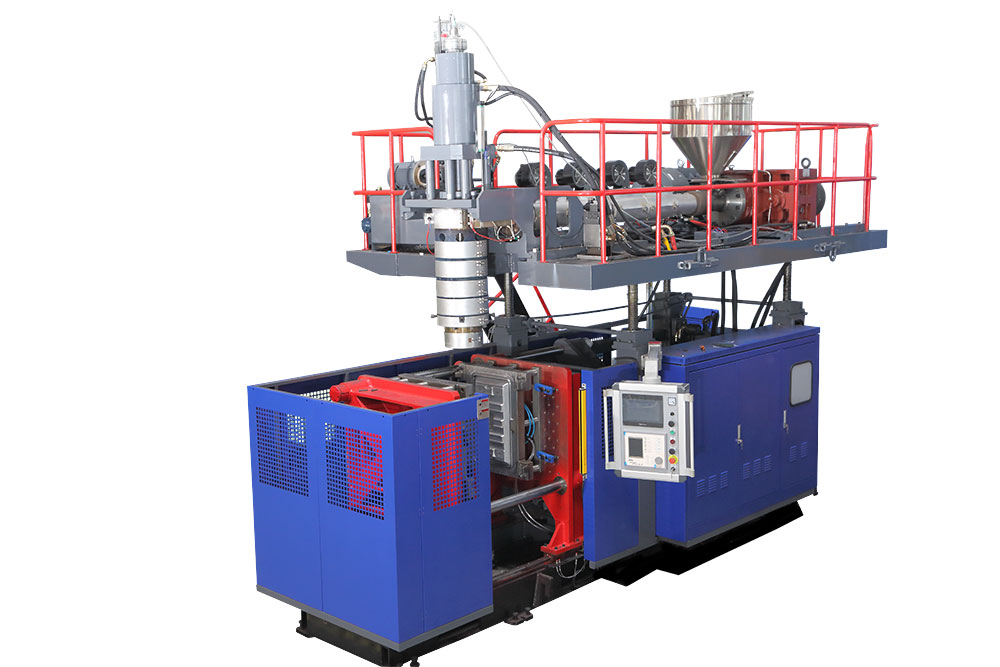

Blow molding machine PLC plus man - machine interface, touch operation.Fault alarm self-diagnosis, clear at a glance.
Center feed die, eliminate the confluence line completely, and change the material and color quickly.
Moving mode adopts double linear guide and center clamping mode.Uniform force, ensure that the products cut flat.
Hydraulic system adopts proportional hydraulic control, equipped with imported hydraulic components, accurate and stable action, energy saving.
High speed, high efficiency and low energy consumption plasticizing system of hollow blow molding machine.
Specification
| Technical parameters of KSC90-60L hollow blow moulding machine | UNIT | YJA90-60L |
| Maximum product volume | L | 60 |
| Empty circulation | PCS/H | 500 |
| Bottle Blower Screw Diameter | MM | 90 |
| Ratio of length to diameter of screw | L/D | 25 |
| Screw motor power | KW | 37 |
| Screw heating power | KW | 21 |
| Number of Screw Heating Sections in Blow Molding Machine | ZONE | 4 |
| Extrusion volume of HDPE | KG/H | 140 |
| Oil pump motor power | KW | 18.5 |
| Clamping force | KN | 350 |
| Mould opening and closing stroke | MM | 500-1200 |
| Template size | W x H(MM) | 700x 1200 |
| Maximum die diameter | MM | 350 |
| Storage capacity | L | 6.6 |
| Die Heating Power | KW | 17 |
| Number of heating sections | ZONE | 4 |
| Blowing pressure | MPA | 0.8 |
| Gas consumption | M3/MIN | 0.8 |
| Cooling Water Pressure of Hollow Blow Molding Machine | MPA | 0.3 |
| Water consumption | L/MIN | 85 |
| Machine outline size | L x W x H(M) | 5.3 x 2.4x 3.8 |
| Machine weight | TON | 13.2 |
