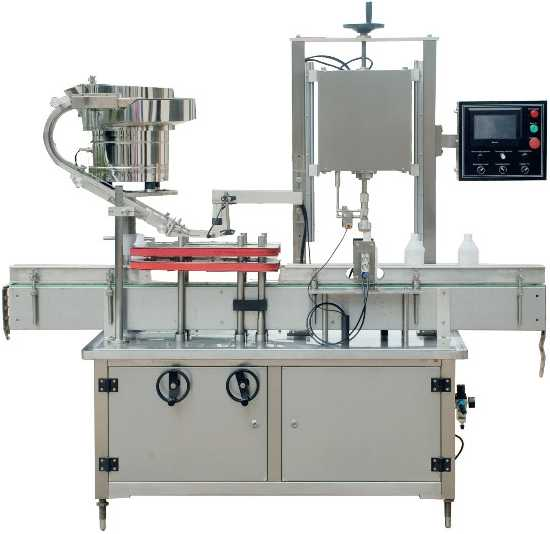

FXZ-1B Full-Automatic Single Head Capping Machine (including capping)

This machine is improved on the basis of the original single head capping machine by adding a capping device, which is used together with the filling machine. After the filling of the material bottle is completed, the material bottle is tightly capped by the capping head after passing through the capping, grasping and capping of the machine.

Specification

Number of capping heads1
Power supply220V/380V three-phase four wire

Total power

1KW
Applicable bottle diameterФ 40mm- Ф 96mm
 Applicable cover diameterФ 28mm- Ф 72mm (the capping head is customized)
Applicable height100mm-300mm

Production speed

  ≤ 3600 bottles/hour
Working air pressure0.55MPa-0.65MPa
Gas consumption 0.3m3/min
Overall dimension2000mm × 1000mm × 1900mm
 Machine weight300 kg
