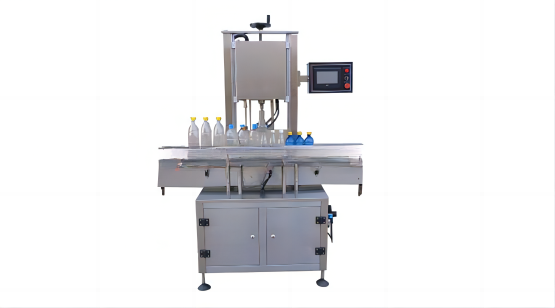

FXZ-1C Single Head Capping Machine (for plastic beverage bottles)

This machine is a special capping machine specially designed for plastic beverage bottles. The plastic beverage bottle body is relatively soft, so the bottle is initially positioned through the bottle stopper cylinder, and then the bottle neck is clamped by two bottle clamping cylinders for precise positioning. This machine has strong versatility and is very suitable for capping bottles for beverages. Comply with GMP requirements.

Specification

Number of capping heads1
Power supply220V/380V three-phase four wire

Total power

0.35KW
Applicable bottle diameterФ 40mm- Ф 96mm
 Applicable cover diameterФ 20mm- Ф 60mm (the capping head is customized)
Production speed ≤ 3600 bottles/hour

Working air pressure

0.55MPa-0.65MPa
Gas consumption0.3 m3/min
Boundary dimension1000mm × 1000mm × 1900mm
Machine weight200 kg
