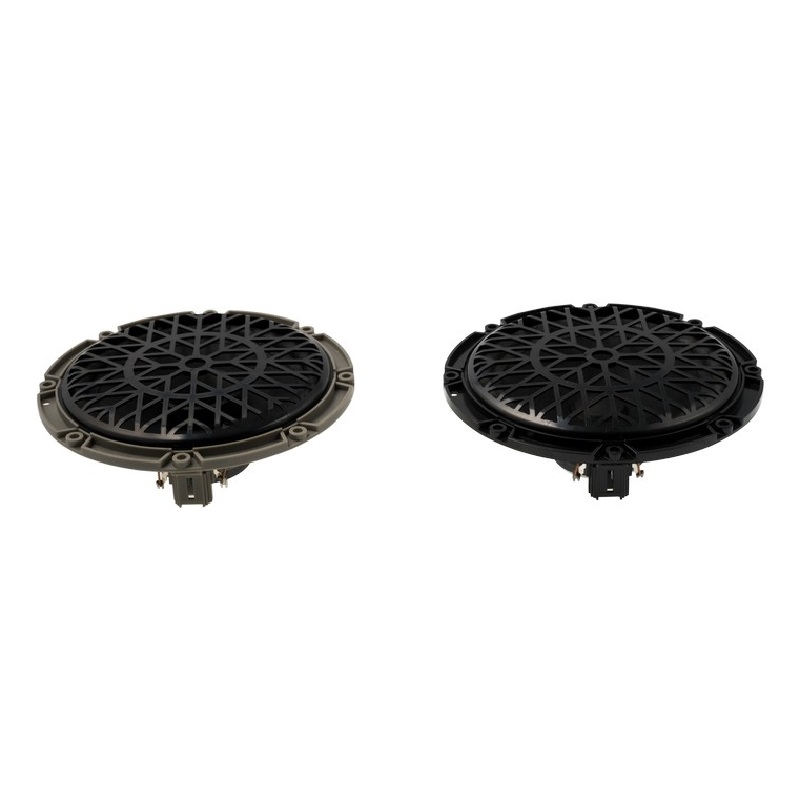

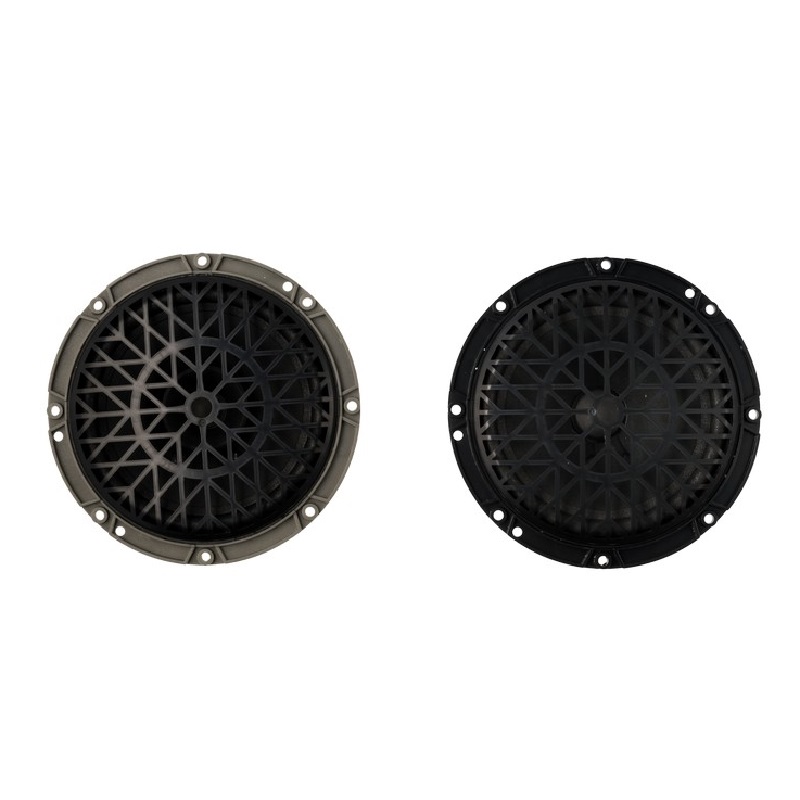

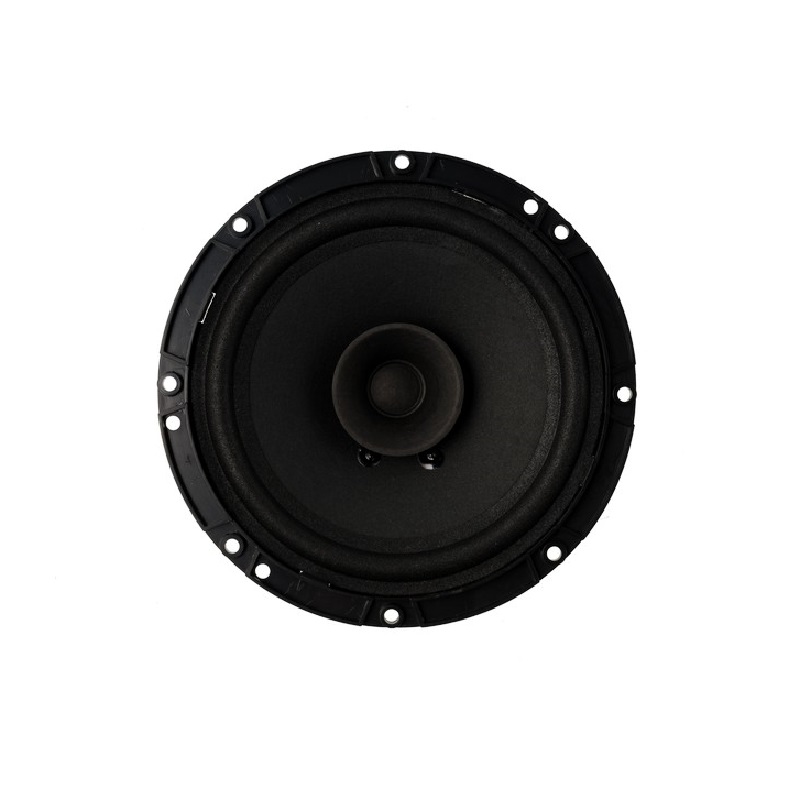

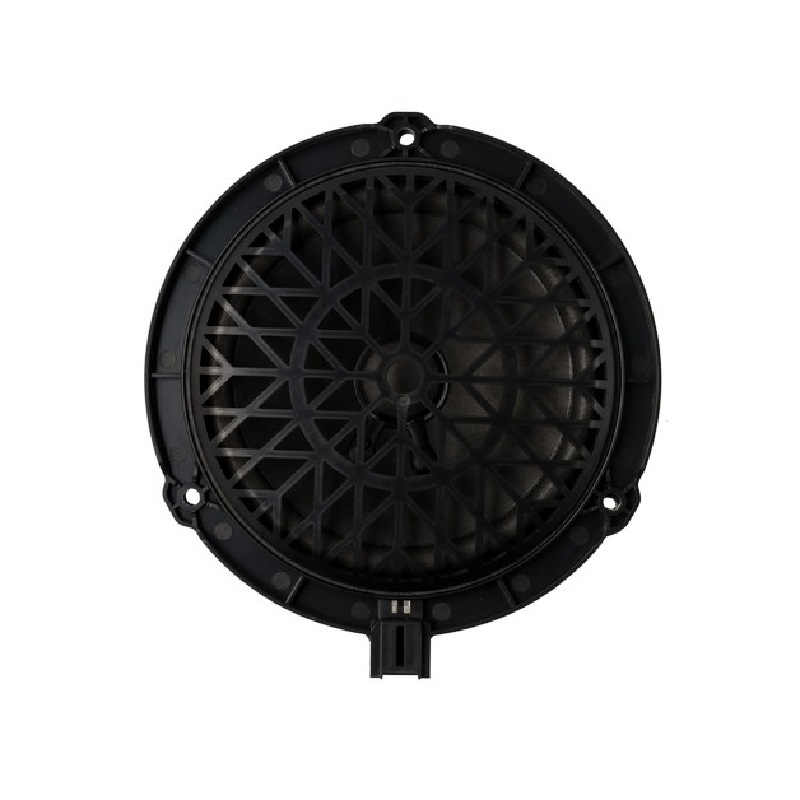

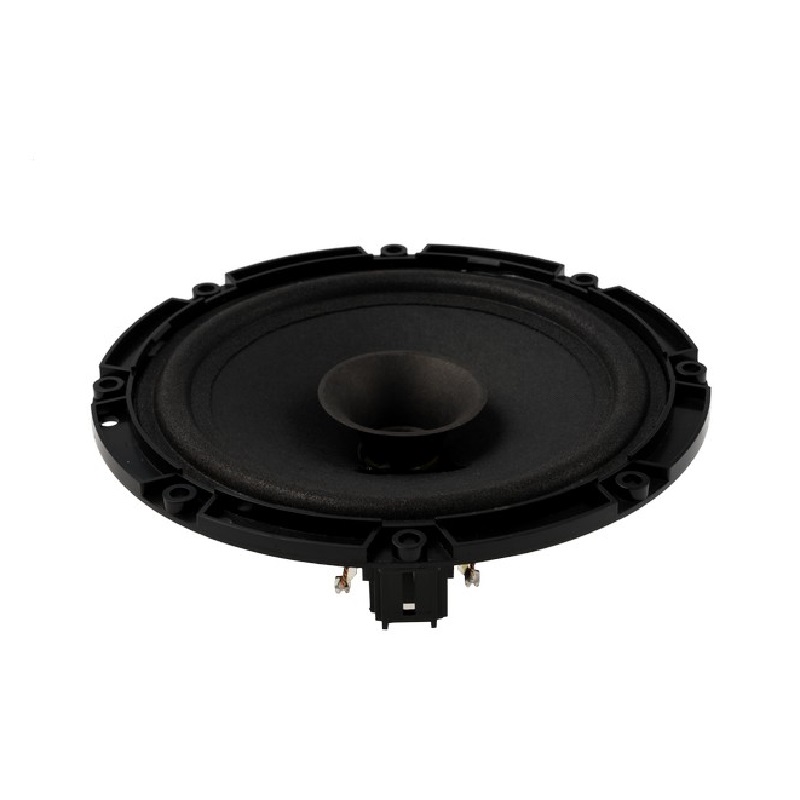

Car speakers for PEUGEOT CITROEN car speaker XY-GF17/XY-GF17-02 is a car audio signal device. During the driving process of the car, the driver sends out the necessary audio signals according to the needs and regulations to warn pedestrians and attract the attention of other vehicles to ensure traffic safety, and is also used for urging and transmitting signals.
With/without grill board for your choice.
Specification
Model No. | XY-GF17/XY-GF17-02 |
Nominal Impedance | 4Ω±15% at 300Hz 1.0V |
Resonance Frequency | 90 Hz ± 20% at 1.0V |
Frequency Range | f0 ~ 13KHz -20 dB |
Sound Pressure Level | 88±3 dB @1W/0.5M AVE at 500,600, 800,1000 Hz |
Buzz & Rattle Test | 8.92 V at 65–13 KHz |
Rated Input | 20 W |
Maximum Input | 40 W |
Magnetic Circuit Specifications | Ф50×Ф24×8 m |
Voice Coil Specifications | Ф19.45 mm |
Overview
Application:Car speakers for PEUGEOT CITROEN specialized car speaker
After-Sales Service:For our car speaker, we have one-year warranty.
Package
1、Stepped-up carton which make it damp-proof and duct-proof.
2、Packed in inner box+shipping box.
