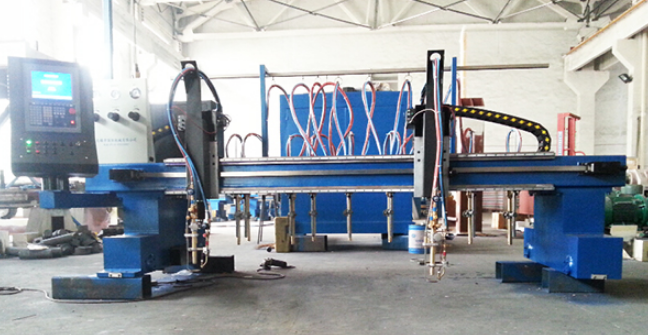

Gantry type oxygen-fuel cutting machine
Standard configuration is 2 CNC cutting torches and 9 strip cutting torches
Spanish F argor, American Hypertherm or Burney CNC system are provided for
option
CNC cutting torch has auto height controller and auto ignitor functions
Auto programming and nesting software is Australia Fast CAM.
Specification
| Model | Driving form | Rail span (mm) | Effective width(mm) | Cutting thickness(mm) | Cutting speed(mm/min) | Max speed(mm/min) | Vertical range of the cutting torch(mm) |
| CNC-CG-3000 | Single side | 3000 | 2200 | 6-150(Depending on the cutting nozzle) | 100-750depending on the cutting nozzle) | 6000 | 150 |
| CNC-CG-4000 | Single side | 4000 | 3200 | 6000 | 150 | ||
| CNC-CG-5000 | Double side | 5000 | 4200 | 6000 | 150 | ||
| CNC-CG-6000 | Double side | 6000 | 5200 | 6000 | 150 | ||
| CNC-CG-8000 | Double side | 8000 | 7200 | 6000 | 150 | ||
| CNC-CG-10000 | Double side | 10000 | 9200 | 6000 | 150 | ||
| CNC-CG-12000 | Double side | 12000 | 11200 | 6000 | 150 |
