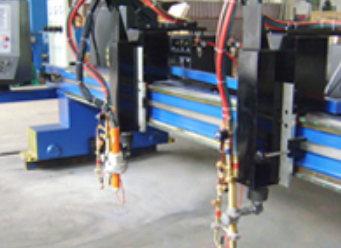

CNC flame&plasma cutting machine is a kind of high- eficient and high-precise
multi-functional cutting device , with the function of longitudinal multi-head cutting
and transverse straight-end cutting. and it also can do other geometric shape
cutting. The gantry type structure design can ensure the high strength and rigidity.
It equipped with Japanese Panasonic fll-digia AC seno driving system and
German Neugart reducer, it runs steadily and cutting with a high precision.
Specification
| Model | Driving type | Rail span (mm) | Effective cutting width(mm) | Cutting thickness(mm, | Cutting speed(mm/min) | Free running speed(mm/min) | Vertical range of the cutting torch(mm) | ||
| Flame cutting | Plasma cutting | Flame cutting | Plasma cutting | ||||||
| CNC-CGP-2500 | Single side | 2500 | 1700 | 6-150 | Depend on plasma power | 100-750 | Depend on plasma power | 6000 | 200 |
| CNC-CGP-3000 | Single side | 3000 | 2200 | 6000 | 200 | ||||
| CNC-CGP-4000 | Double side | 4000 | 3200 | 6000 | 200 | ||||
| CNC-CGP-5000 | Double side | 5000 | 4200 | 6000 | 200 | ||||
| CNC-CGP-6000 | Double side | 6000 | 5200 | 6000 | 200 | ||||
| CNC-CGP-7000 | Double side | 7000 | 6200 | 6000 | 200 | ||||
| CNC-CGP-8000 | Double side | 8000 | 7200 | 6000 | 200 | ||||
| CNC-CGP-9000 | Double side | 9000 | 8200 | 12000 | 200 | ||||
| CNC-CGP-11000 | Double side | 11000 | 10200 | 12000 | 200 | ||||
| CNC-CGP-12000 | Double side | 12000 | 11200 | 12000 | 200 | ||||
| CNC-CGP-13000 | Double side | 13000 | 12200 | 12000 | 200 | ||||
