As a special motor manufacturer for oil pump, the company mainly produces planetary reduction motors, permanent magnet brushless DC motors and other products. At the same time, as a DC brushless motor manufacturer, the product specifications and models are complete. The quality is guaranteed. According to the specific needs of customers, the goods can be delivered on time and in quantity.
Specification
| Motor model | Rated voltage | Rated current | No-load speed | No-load current | Rated speed | Rated torque | output power | stall torque | Locked rotor current |
| TYPE | VDC | A | r/min | A | r/min | m.Nm | W | mN.m | A |
| 4568 | 24 | 350 | 2000 | 0.18 | 1700 | 30 | 5 | 0.12 | 1.1 |
| 4568 | 24 | 800 | 3000 | 0.25 | 2400 | 43 | 10 | 176 | 2.7 |
| 4568 | 24 | 100 | 4000 | 0.35 | 3200 | 43 | 14 | 215 | 3 |

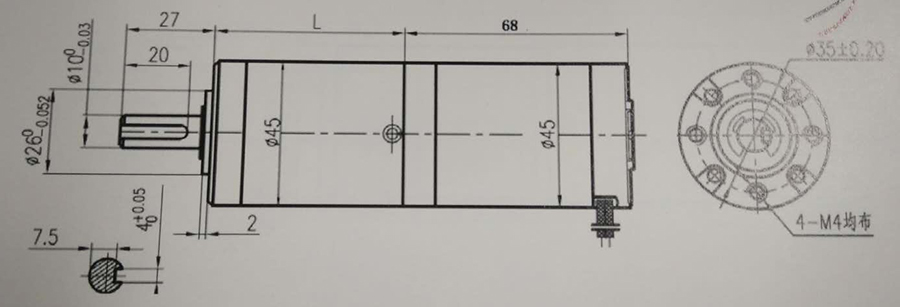

Diagram
Production
