As a special motor manufacturer for oil pump, the company mainly produces planetary reduction motors, permanent magnet brushless DC motors and other products. At the same time, as a DC brushless motor manufacturer, the product specifications and models are complete. The quality is guaranteed. According to the specific needs of customers, the goods can be delivered on time and in quantity.
Specification
| Push rod type | low-voltage DC electric push rod |
| Working environment | minus 20 degrees&# 8212; 70 degrees |
| Rated voltage | 24 VDC |
| Rated thrust | 750 N |
| No-load current | 0.3 A |
| No-load speed | 12 mm/s |
| Load current | 0.8 A |
| Load speed | 10 mm/s |
| Test thrust | 600 N |
| Noise | 40cm&# 8804; 50 dB |
| Withstand voltage | 1200 AC V, 1 s leakage current not greater than 5 mA |

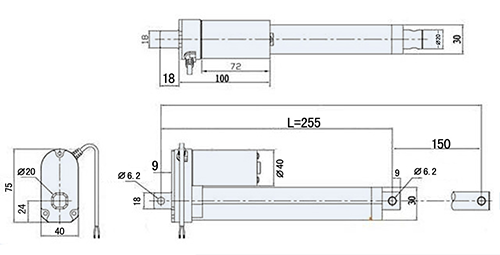

Diagram
Production
