1. Highly modular design, which can be easily matched with various types of motors or
Use other power inputs.
2. Transmission ratio, fine division, wide range.
3. The installation form and location are not limited.
4. High strength and small volume.
5. Long service life.
6. Low noise.
7. High efficiency.
8. It can bear the axial load not greater than 5% of the radial force.
Specification

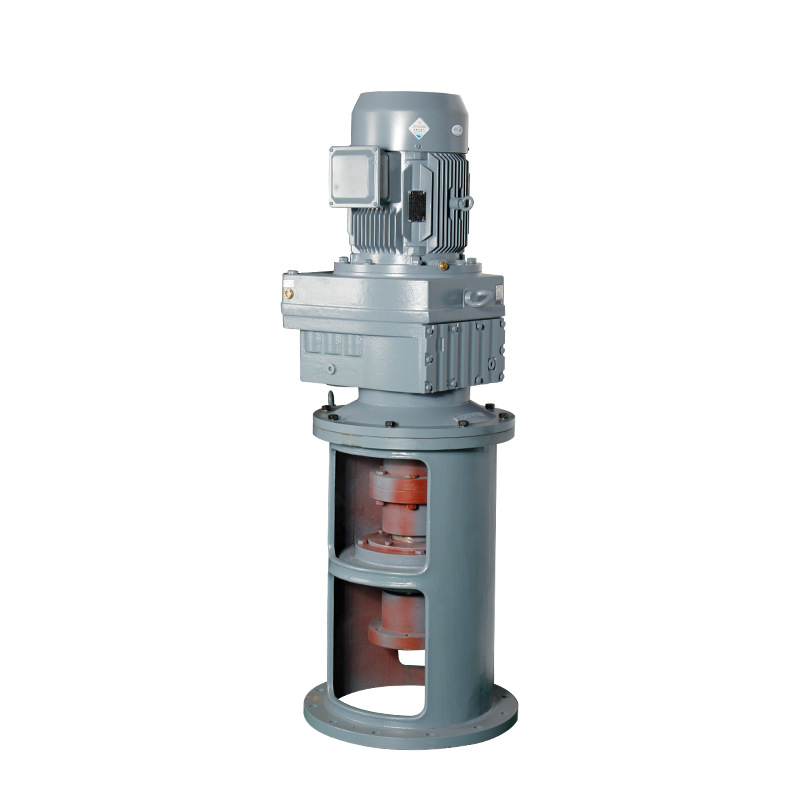

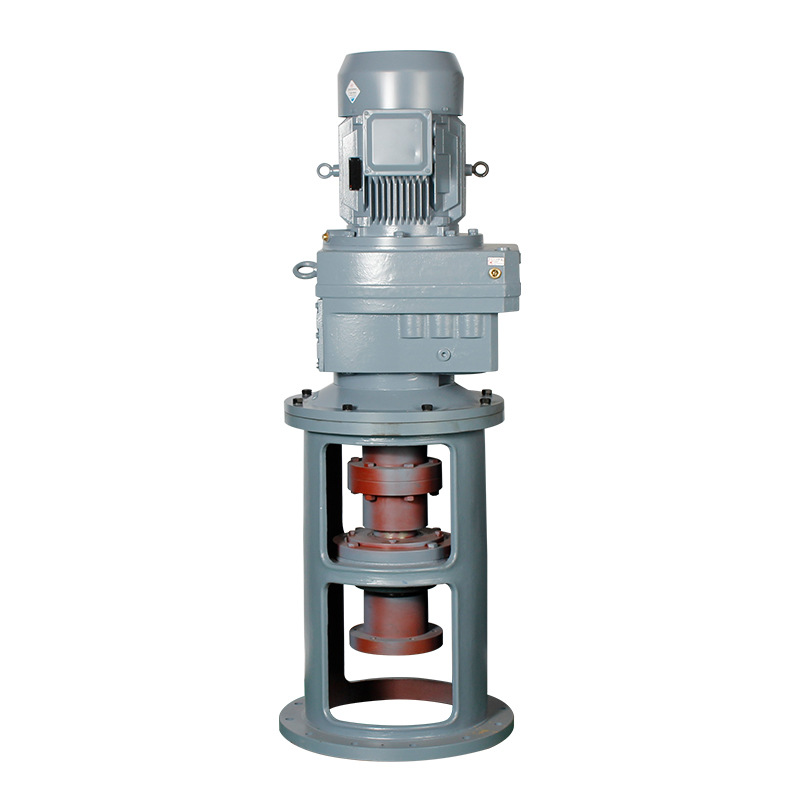

| Model | JRF137-Y18.5-4P-33.10-M4- φ450 |
| Category | Gear reducer |
| Gear type | Helical gear reducer |
| Installation form | vertical |
| Layout form | Coaxial |
| Input speed | 1450（rpm） |
| Rated power | 18.5（kw） |
| Output speed range | 45（rpm） |
| Allowable torque | 3754（N.m） |
| Series | Single-stage |
