1. Highly modular design, which can be easily matched with various types of motors or
Use other power inputs.
2. Transmission ratio, fine division, wide range.
3. The installation form and location are not limited.
4. High strength and small volume.
5. Long service life.
6. Low noise.
7. High efficiency.
8. It can bear the axial load not greater than 5% of the radial force.
Specification

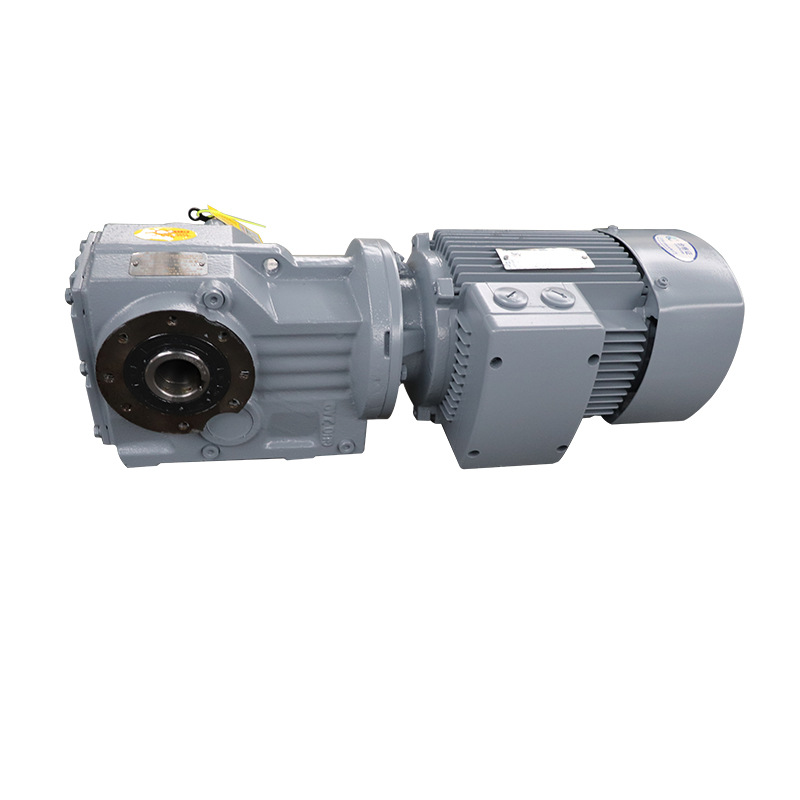

| Model | JKA77-Y4-4P-29.31-M1-IEC |
| Category | Gear reducer |
| Gear type | Bevel gear reducer |
| Installation form | Horizontal |
| Tooth surface hardness | Hard tooth surface |
| Input speed | 1450（rpm） |
| Rated power | 4（kw） |
| Output speed range | 49（rpm） |
| Allowable torque | 739（N.m） |
| Series | Single-stage |
| Reduction ratio | 29.31 |
