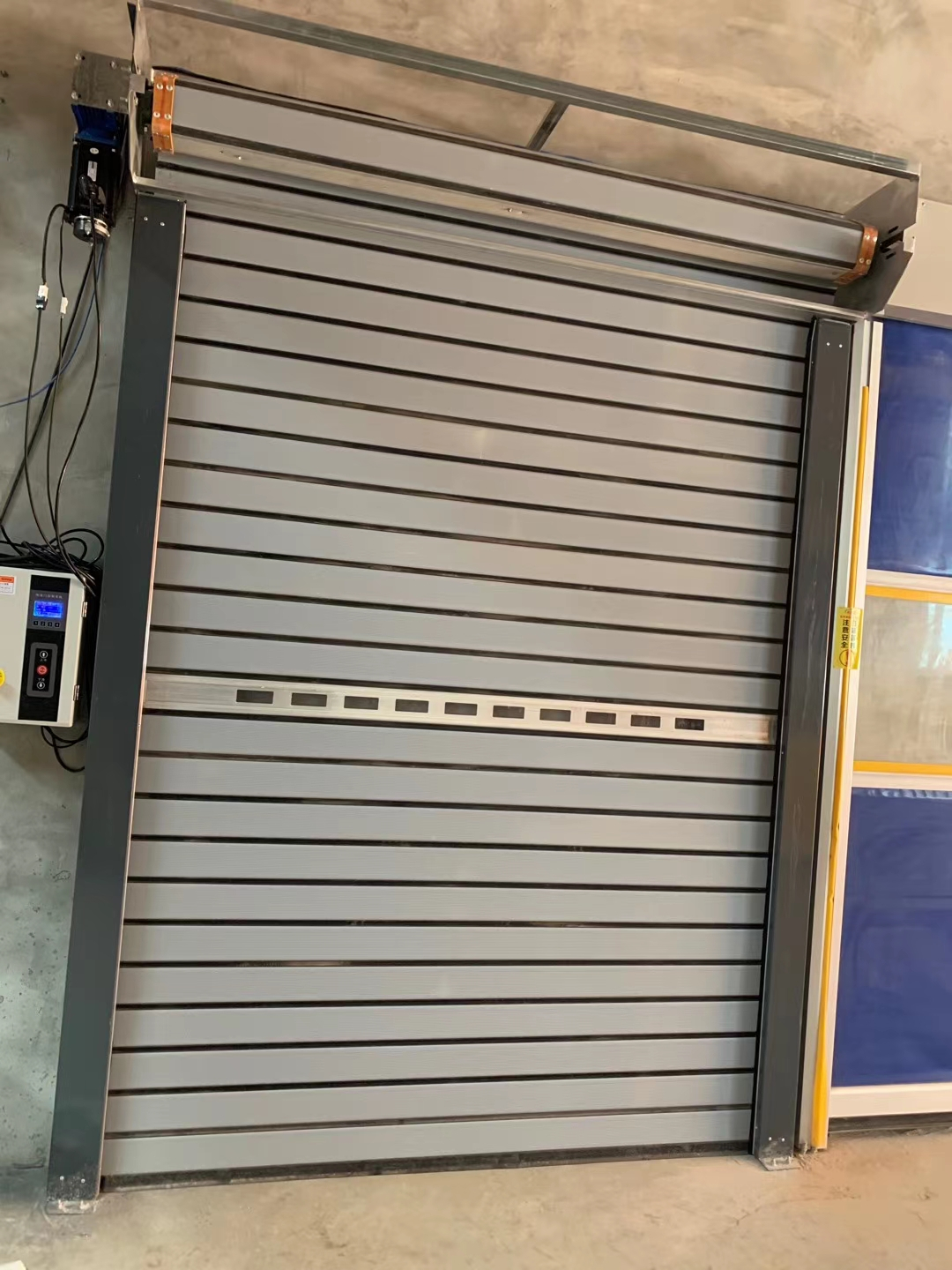

Specification

Specification and size: W3000MM * H3000MM

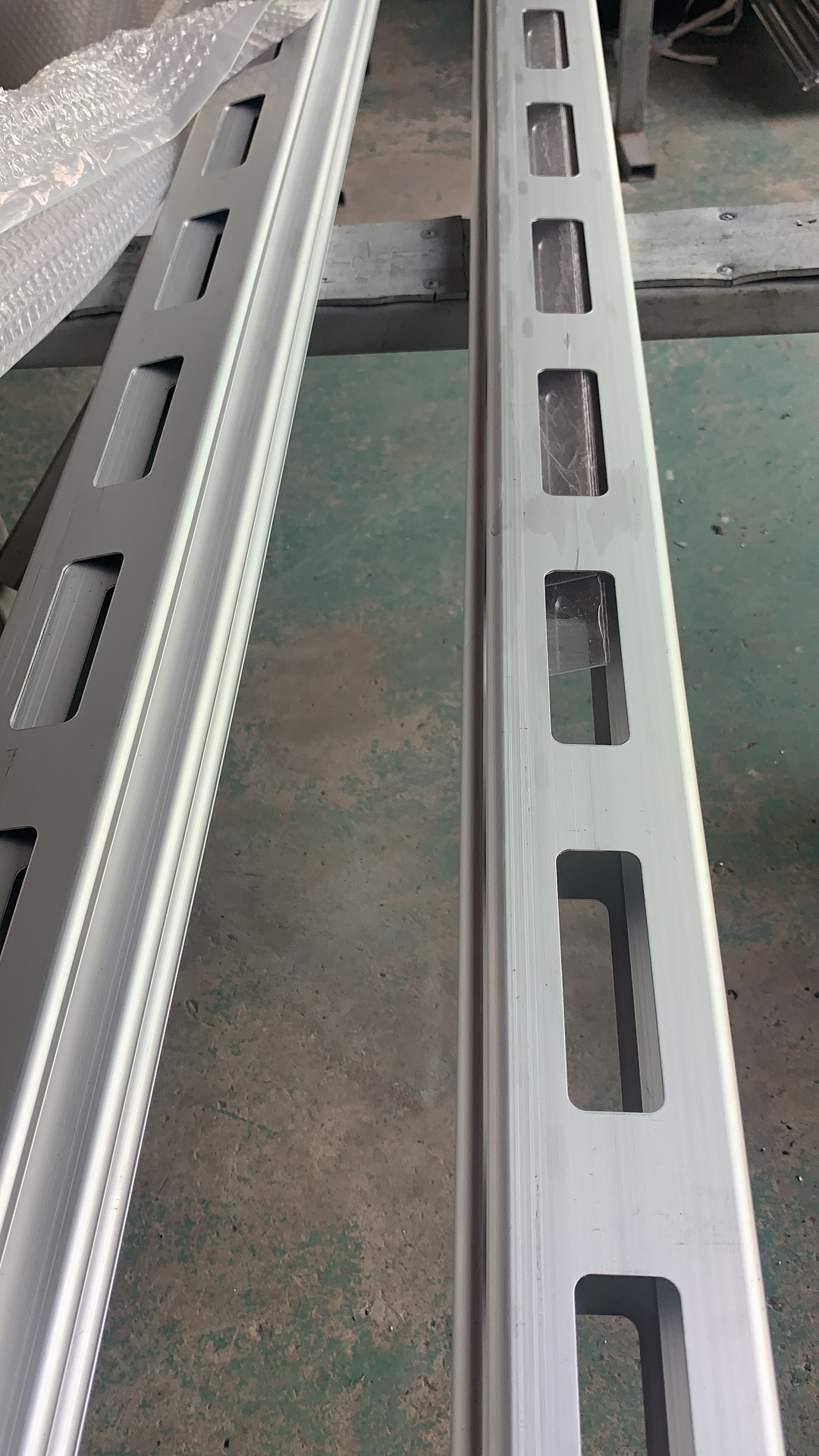

Door leaf: aluminum alloy profile (wall thickness 1.0MM, 15 overall thickness X100MM wide) (silver gray/dark gray)

Connection: flexible connection (25MMX20MM EPDM)+chain connection (3.0MM thick)

Power: Grande or Mingchuan Motor (1.5KW-2.2KW)

Control: Grande or Mingchuan control system

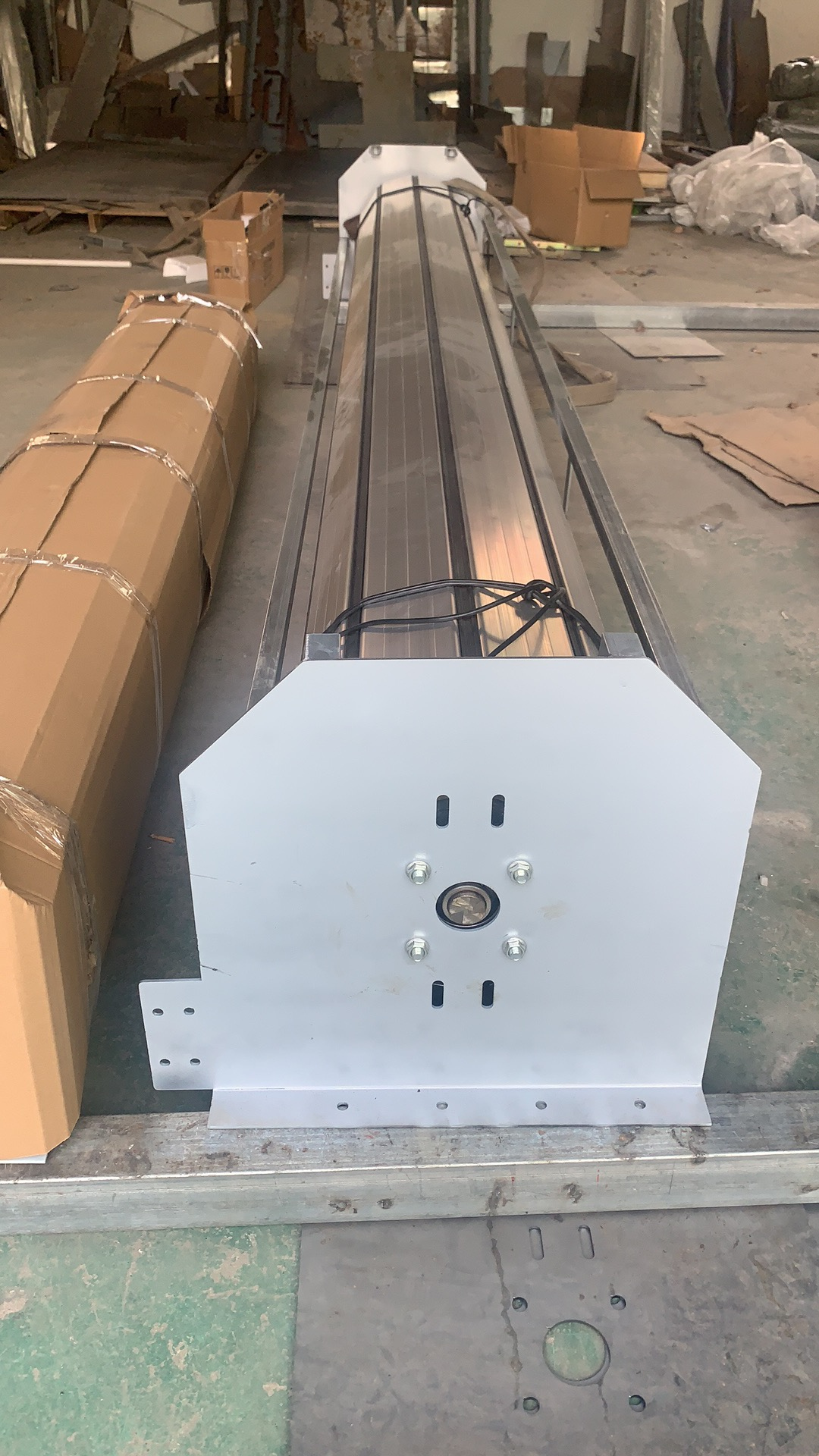

Shaft tube: built-in counterweight shaft tube, 3MM thick wall 200MM diameter steel pipe, 60 silicon manganese dioxide torsion spring

Frame: side plate is 5.0MM thick cold-rolled plate, 20MM thick 30X50MM square tube (white/dark gray)

Package box: 1.0MM galvanized sheet electrostatic spray treatment (white/dark gray)

Protection: ground sensing/photoelectric/radar/airbag

Track: 2.0MM galvanized plate electrostatic spray treatment (white/dark gray)+conveyor wheel set+brush

Positioning: coding positioning

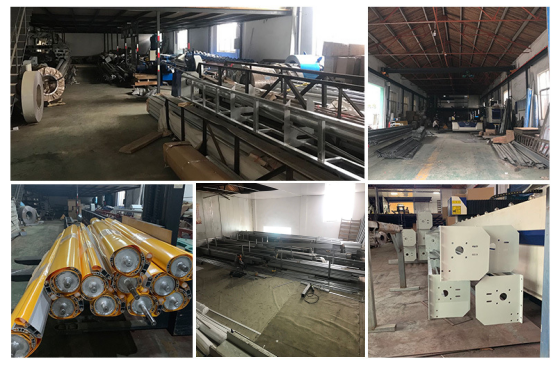

Production
