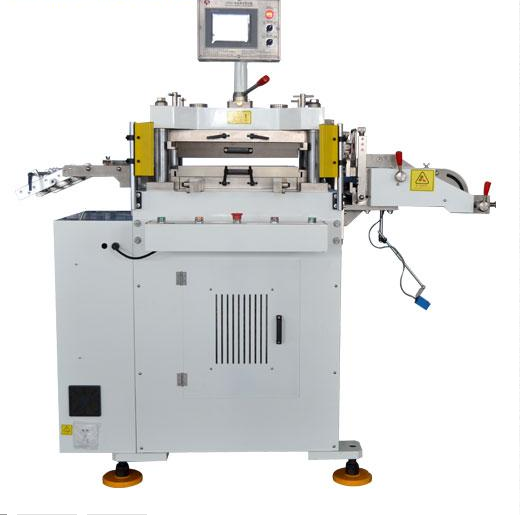

High speed precision die cutting machine series
Specification
| Blanking pressure | 10T |
| Punching&cutting stroke | 30mm |
| Punching&cutting speed | ≤200 (time/min)(Pull length≤100mm) |
| Mould height | 115mm |
| Depth adjustment volume | ±5mm |
| Fine luning method | Automatic |
| Punching mode | jog/single time/connection |
| Template size | Width 440x Length300（mm） |
| Mould type | Wood plate mold corrosion mold engraving mold (QDC) |
| Effective dimension of cutting die | 420x280（mm） |
| Material width | ≤420（mm）（QDC） |
| Feed precision | ≤0.1mm Servocontrol |
| Feed rubber roll | PU/NBR |
| Lubrication | Auto |
| Safety protection | Three side light curtain |
| Air source | 0.55-0.6Mpa |
| Machine weight | 3.5T |
| Power supply | three-phase 380VAC/10kw |
| Machine shape | L1200*W1000*H1650（mm） |
