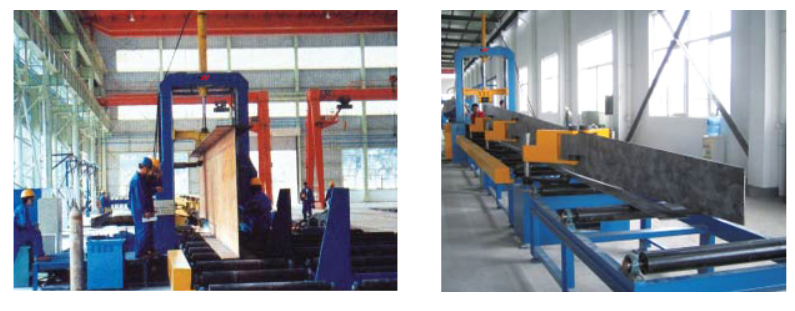

Process including clamping and alignment of web and flange, automatic tack-
welding is controlled with PLC. Main machine is driven by A.C .inverter, stable and
reliable. Upper press-beam is guided thru left and right four rails, ensuring steady
clamping of long time use.
Specification
| Item | Z15 | Z18 | Z20 | |
| Size of VVeb | Height | 200-1500mm | 200-1800mm | 200-2000mm |
| Thickness | 6-32mm | |||
| Size of Flange | Vvidth | 200-800mm | ||
| Thickness | B-40mm | |||
| Work-piece length | 4000-15000 mm | |||
| Assembling speed | 05-Rm/min | |||
| Machine power | Main frame power 11.7KVy (25KVAfor 2 sets of CO2Welding machine excluded) | |||
