It is suitable for component factories whose main business is 182 components and 210components are auxiliary businesses.
Low cost & low scrap rates.
Eco-friendly &physical advantages.
Long storage time & high yield rates.
Good ductility & durabiliy.
No hazards & no odor.
Low temperature resistant & high temperature resistant.
OEM & ODM service.
MOQ: 1
Specification

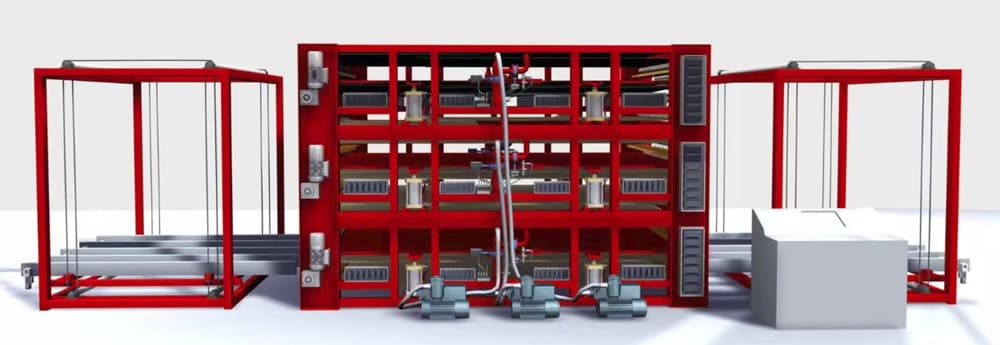

| Model | LAM2637 type single-cavity three-sheet three-layer electric heating pipe laminator |
| Technical Specifications | The effective lamination area is 2600*3700mm. (It is suitable for component factories whose main business is 210 components and 182 components are auxiliary businesses.) |
| Power / Machine Capacity | 3x380V AC, 50HZ, total power <240KW, of which the heating power is 210KW. Operating power: 42-63KW. Each layer can operate independently. |
| Size | 13m(L)*4.5m(W)*2.8m(H) |
| Weight | W <30 tons |
| Capacity (MW / year) | 189 MW / year (calculated with 182 components) |
| Vacuum System | 2X-70A rotary vane vacuum pump. (optional) |
Production
