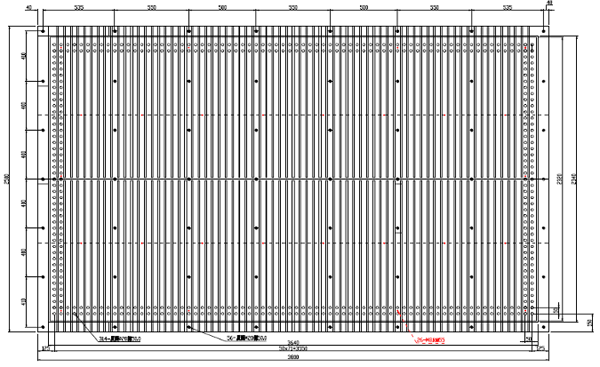

The heating tube is buried in the heating plate, and there is no heat conduction oil tank, which is safe and reliable, with high thermal efficiency and stable operation. Quiet, no heat dissipation around the laminator. The multi-point temperature control mode is adopted to ensure the uniformity of temperature.

The temperature curve during the lamination process is clearly visible on the man-machine interface, which can greatly help the craftsman to control the entire process of EVA heating, melting and gluing. Since the heating system has the functions of rapid temperature rise and temperature drop, different process temperatures can be set in the pressure holding stage of the lamination process, and the process time can be shortened on the premise of ensuring good component quality and adhesive viscosity.

Therefore, the production efficiency of the electric heating tube laminator is relatively high. The capacity of the single-chamber laminator is close to that of the dual-chamber laminator.

1. In order to ensure the dynamic temperature uniformity of the electric heating tube laminator ≤±2℃, we have done a lot of work in the heating system, so it contains a certain technical content, so the production cycle is long and the cost is high.

This is also the fundamental reason why few companies in China can make electric heating tube laminators.

2. Noise of vacuum pump: 75 decibels at a distance of 1 meter.

3. If there is no accidental damage to the parts, the maintenance cost is basically zero.

4. Compared with the thermal oil laminator, it can save 25% of the power consumption every year.
