The automation system is designed and developed according to the work that Party A needs to complete and the work environment on site.
OEM & ODM service.
MOQ: 1 set
Specification
| Single Layer Maximum Net Load | 3T |
| The Layer Number | 3 |
| Maximum Plate Size Allowed | 3000*1500mm |
| The Net Height Of Each Layer Is Allowed | 205mm |
| Maximum Allowable Sheet Material Thickness | 8mm |
| Minimum Allowable Sheet Thickness | 1mm |
| Air Consumption | 1.5 / m³ / min |
| Horizontal Moving Speed Of Lift | 9m / min |
| Vertical Movement Speed Of Lift | 12m / min |
| Machine Tool Dimensions | 4800*5800*7000mm |

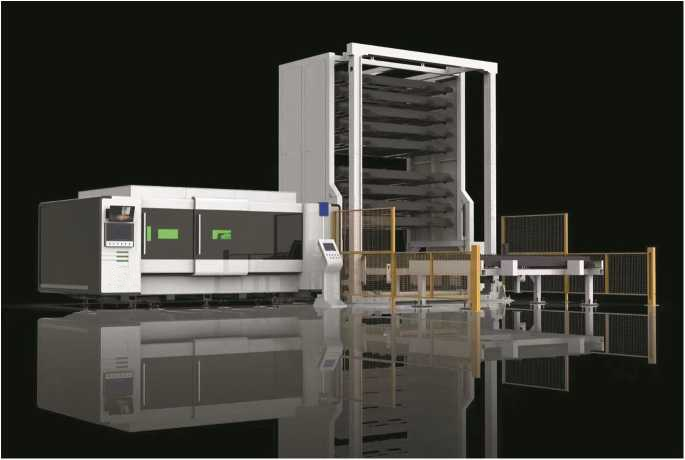

Equipment Characteristics
Through the robot motion controller to control each part to achieve automatic layering of sheet material, automatic retrieval, automatic feeding, automatic discharge and other automatic production of the whole process, can effectively ensure product quality, improve production efficiency, reduce production costs. The entire system has a good operating interface for the operator to use.
