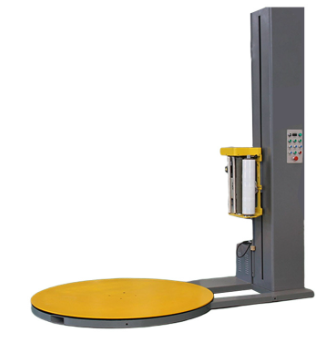

Tray winding machine

Product introduction
Configuration List Working mode: Automatic (PLC)
Power supply: AC220V/50Hz
Inverter Shilin rotary motor power: 0.40kw
PLC Xinjie film frame motor power: 0.37kw
Text display Xinjie film motor: 0.2kw
Opto-electronics Korea Otonomix membrane frame speed: 0-2.9 m/min
Wheel speed: 0-13 RPM
Jency lifting motor wheel diameter: 1500 mm (1650 mm. 1800 mm. 2000 mm. 2500 mm, etc.) can be customized
Button French Schneider turntable height: 90mm
Site roller Japan external size: L2500mm W1500mm H2510mm(o1500mm as an example)
Electric roller cloth Dutch machine weight: 750kg
Stroke switch Chint tension adjustment: mechanical adjustment
Output film motor state height measurement: photoelectric sensor
Note:
Due to the continuous updating and improvement of products,
Subject to individual changes,
Without prior notice. Turntable start mode: frequency conversion slow start
Packing weight: 2000kg(Note: more than 2000KG can be customized)
Packing height: ≤3000mm
Optional accessories: 1. Ramp 2. Remote control
Application field
The winding packaging machine is suitable for the container transportation of bulk goods and the packaging of spare parts pallets. Widely used in glass products, hardware tools, electronic appliances, paper making, ceramics, chemical, food, beverage, building materials and other industries, can improve logistics efficiency, reduce the loss in the transportation process, with dust, moisture, reduce packaging costs and other advantages, is an ideal choice to improve product packaging grade.
Working performance
1, man-machine interface set the program running parameters.
2, humanized panel icon, more convenient and simple operation.
3, PLC programmable control of the whole machine operation, the number of winding layers and the number of 1~9 turns can be adjusted.
4, photoelectric dynamic measurement of the height of the goods.
5, turntable frequency control, slow start slow stop automatic reset.
6, the film frame pretensile mechanism (tensile ratio 350%), the film can be easily pulled.
7. The chain structure is adopted, and the rising and falling speed of the film frame is set separately.

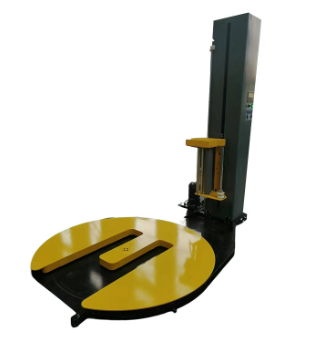

8, and car groove humanized structure.
