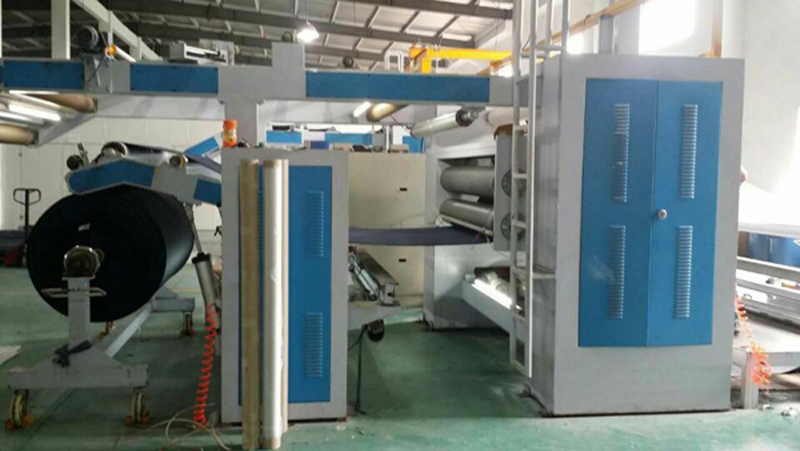

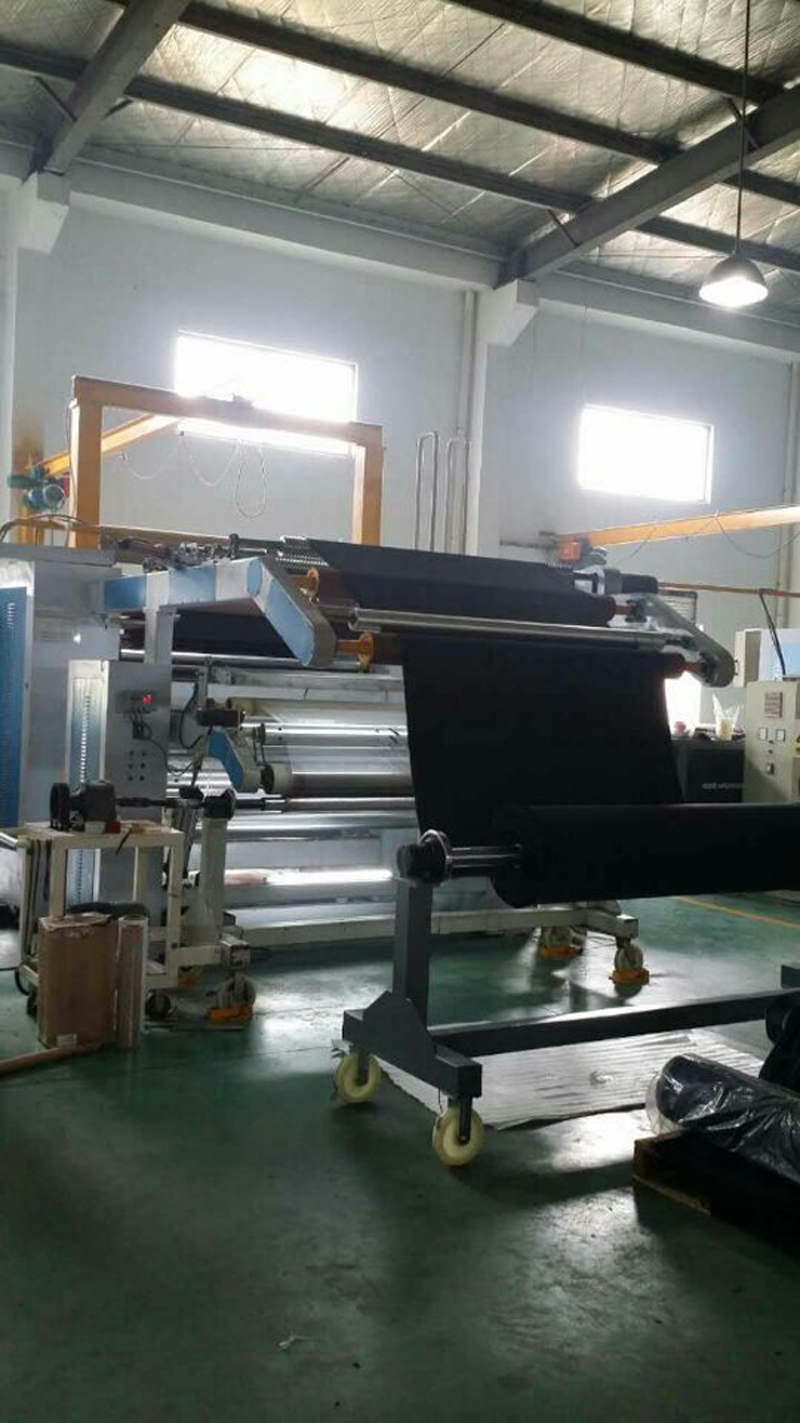

H-1400 type PUR hot melt laminating machine refers to the hot melt bonding process of plastics, sheets, cloth, etc. through thermal radiation, combining two or more different materials and applying a certain pressure to make them composite into one processing machine.
Adopt programmable PLC design and man-machine interface control, humanized operation and easy maintenance.
Tension-free feeding device, with heating circulation system, convenient to control the temperature rise and fall of glue and stability.
Laminating materials and finished products can be center-coiled or surface-selected according to needs, and the gluing method is divided into two options: dispensing and full coating.
Specification
Working Cloth Width | 3000mm |
Mechanical Spokes | 3200mm |
Line Speed | 1~50 m / min |
Size (LxWxH) | 10000x4500x3200mm |
Heat Conduction Oil Heating Power | 24kw and 18kw adjustable heat conduction oil circulation 180°c (max) |
Total Power | 65Kw |
Power Supply | 380V, 50Hz |
Total Weight | About 9000kg |
Feature
1. The PUR hot melt adhesive used does not contain solvents and is an ideal green glue.
2. No residual solvent in the product, no pollution emission problem in production, energy saving, and small footprint.
3. The process of compounding is wet-solid reaction, irreversible, and the adhesion is firm and the fastness to washing is good.
4. PUR hot melt adhesive does not contain water and solvents, no drying is required, and the compounding speed is fast.
5. Strong viscosity, less glue consumption and cost saving.
6. Fully linked control of the composite process, no stretching of the base material, light and soft, and good hand feeling.
7. The heat source is oil heat, fast heating and uniform heat.
8. The melting system is independent, and the melting speed is fast.
9. Dot-shaped mesh pattern glue, the finished product has good air permeability and strong three-dimensional effect.
10. The humanized design of the machine saves operators.
11. It has a small amount of diversified production design to save costs, and the digital control system makes the operability better.
Maintenance
1. The lubricating oil of the reducer should be replaced every six months.
2. The 350# heat conduction oil should be replaced every six months when the thermal oil machine is used.
3. The hydraulic oil tank should be replaced with N46 or N32 anti-wear hydraulic oil every six months.
4. Check the hydraulic oil tank and the oil tank of the thermal oil machine once a month, remove the oil scale, remove impurities, add enough lubricating oil and heat transfer oil bearings, and add lubricating oil to the screw every shift.
5. After each shutdown, the glue tank, squeegee accessories, and anilox roller must be cleaned in time to remove residual glue and dirt from all parts of the machine.
6. The chain should be checked every shift to ensure normal lubrication and tension in time.
7. Check each connecting part every shift, whether the fasteners are loose or missing, and fasten them in time.
8. Check whether there is oil leakage at the joints of oil pumps, oil cylinders, solenoid valves, distribution valves, and oil pipes every shift.
