Specification

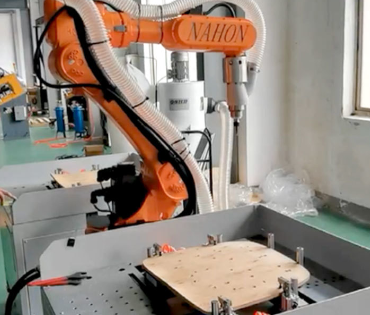

Intelligent curved plate drilling workstation：

1. It adopts block design, and the workpiece is automatically centered on the workbench. It is suitable for drilling various curved plates, and the equipment has good versatility.

2. The double worktable configuration improves the production efficiency. The average drilling speed is less than 1 second. The working efficiency is 4 times that of manual marking and drilling. The product consistency is good, especially suitable for the processing of foreign trade products.

3. The patented power head has the characteristics of high speed, leather, energy saving, built-in dust collection, and excellent energy saving and environmental protection performance.

4. The robot is restricted to the operator's position, and the equipment operation is safe and user-friendly.

5. The stainless steel workbench is beautiful and generous. The overall size of the equipment is 2.7 meters long, 0.9 meters wide, 1.5 meters high, with a total weight of 450 Kg, a total power of 2 kw, and compressed air of 4-6 bar.

6. Main equipment configuration:

a) Nanjing Eston ER06-1600 articulated arm robot

b) Two pneumatic automatic centering worktables

c) A patented robot power head

d) One dust collector
