WRB, WRT series stainless steel corrosion-resistant centrifugal pumps are used to transport corrosive liquids containing particles less than 0.2mm. The temperature of the conveying medium is generally -20°C~145C, and it has entered the industrial fields such as petroleum, rubber, textile, printing and dyeing. As a matching pump for printing and dyeing machines, this pump has been used in the printing and dyeing industry and is well received by users.

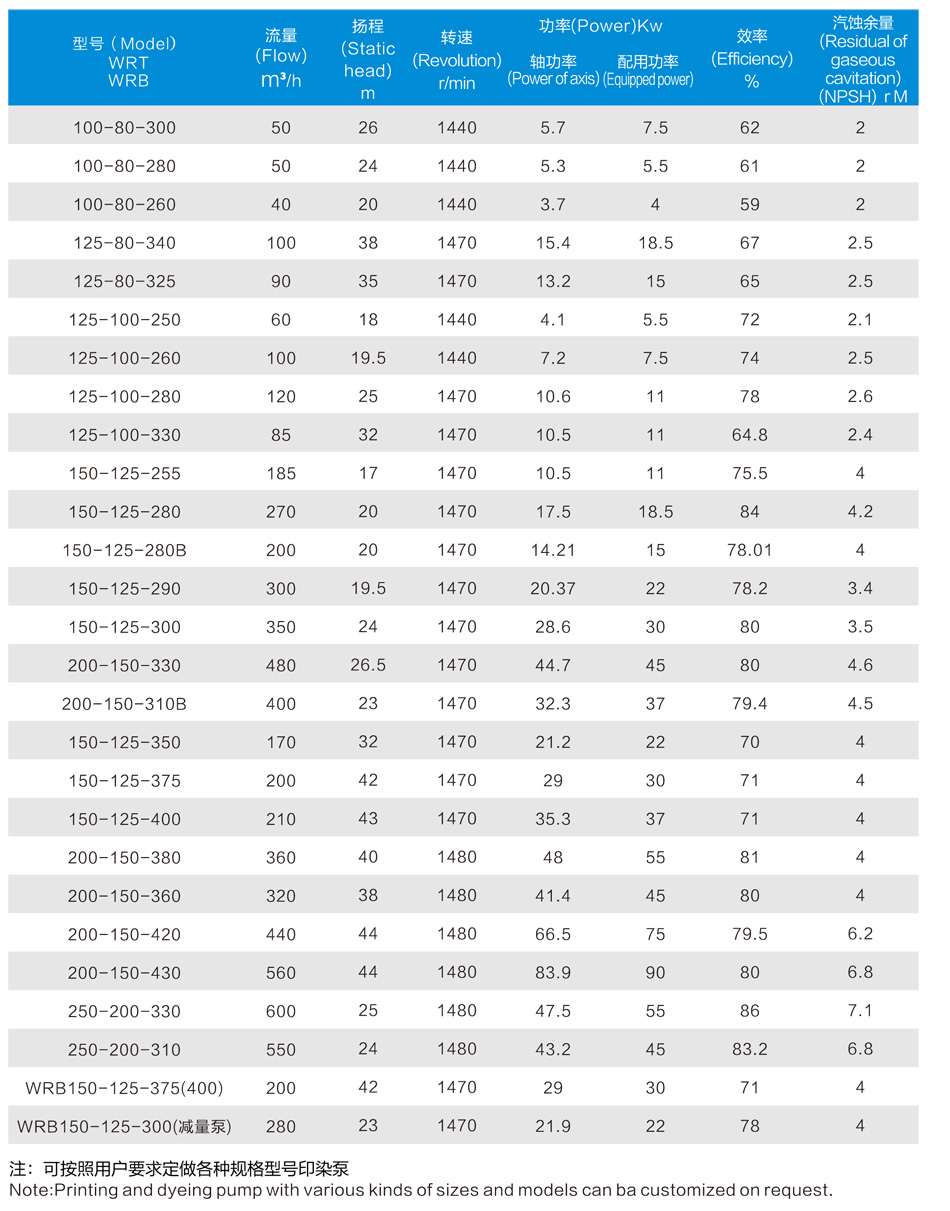

Specification
WRB, WRT series stainless steel corrosion-resistant centrifugal pump is a single-stage single-suction cantilever centrifugal pump, the inlet of the pump is axial suction, the outlet is the center vertical upward, and the motor is mounted on the base.
The pump is composed of main components such as pump body, impeller, pump cover, shaft and bracket. The shaft seal of the pump adopts mechanical seal, the bearing is lubricated with lubricating oil for deep groove ball bearings, and an auxiliary foot is provided at one end of the bracket to enhance rigidity and improve the operational reliability of the pump.
The overflow parts in the pump are all made of stainless steel, which has good corrosion resistance.

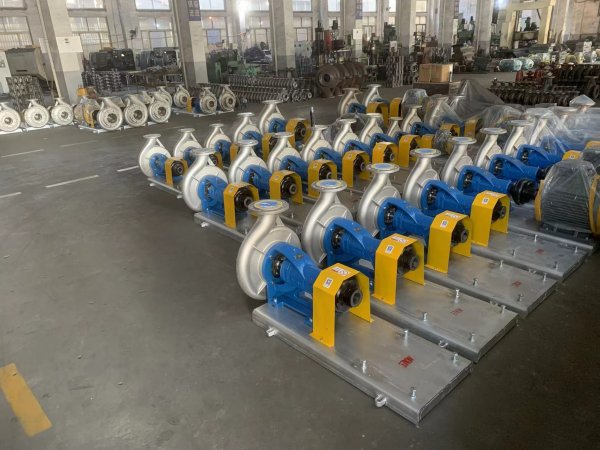

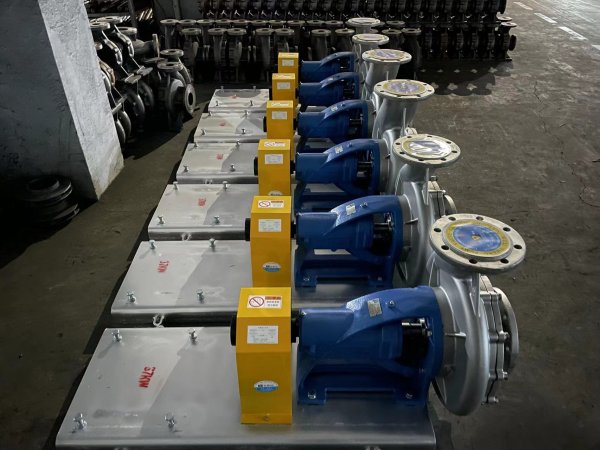

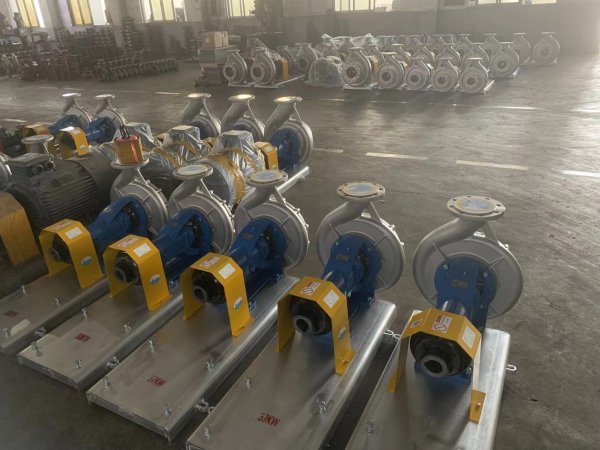

Production
