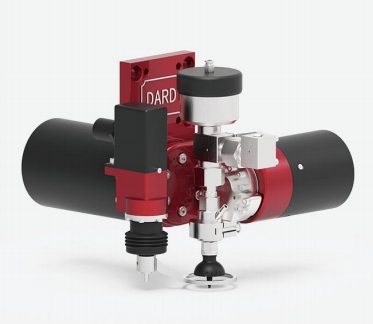

AB10 Five axis cutting head (sand)

Product characteristics

·0°~10° deflection Angle cutting;

· Vertical cutting can be achieved with deflection compensation function

Cut or small Angle cutting, suitable for all kinds of high precision

Degree cutting situations, such as medical orthopedic implants

Material, etc.;

· Reverse can be achieved with the verticality compensation function

Groove cutting, suitable for ceramic, stone parquet

Etc.;

· With RTCP function, no 3D software required.



Main parameter

· A-axis travel :±10°

·B axis travel :±10°

·A, B axis positioning accuracy :≤30"

· Repeated positioning accuracy of axis A and B :≤20"

· Maximum operating speed :360°/s

· Software RTCP
