This equipment is suitable for the recovery of dilute alcohol in the pharmaceutical, food, and chemical industries. It is also suitable for the distillation of methanol and other solvents. Depending on the user's needs, this equipment can distill dilute alcohol (around 30 degrees) to 90-95 degrees. Higher alcohol content requires a higher reflux ratio, but this will reduce the output.

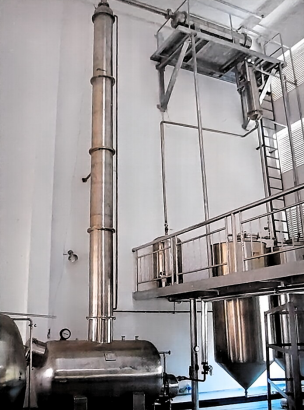

This equipment uses high-efficiency stainless steel packing. The distillation column is made of stainless steel to prevent iron filings from clogging the packing, extending the equipment's service life. The distillation kettle uses detachable U-shaped heating tubes, which can be pulled out during maintenance for easy cleaning of the heating tube and kettle walls. This equipment can operate intermittently, semi-continuously, or continuously.
| JH200 | JH300 | JH400 | JH500 | JH600 | JH800 | |
| Tower Volume (L) | 640 | 1220 | 1450 | 2300 | 2500 | 3200 |
| Tower Height (mm) | 6000 | 7000 | 8000 | 8000 | 10000 | 12000 |
| High-Level Tank Volume (L) | 300 | 400 | 650 | 800 | 1000 | 1500 |
| Condensation Area (m²) | 5 | 9 | 11 | 22 | 25 | 40 |
| Cooling Area (m²) | 1 | 1.5 | 2.2 | 6 | 8 | 15 |
| Heat Exchange Area (m²) | 4.0 | 6 | 12 | 17 | 25 | 30 |
| Recovery Capacity (kg/h) | 45-50 | 90-100 | 150-160 | 280-300 | 420-440 | 600-620 |
| Recovery Concentration (%) | >90-95% | |||||
| Packing Type | Stainless steel corrugated packing | |||||
| Equipment Weight (kg) | 1100 | 1900 | 2300 | 3800 | 4500 | 7800 |
| Dimensions (mm) | 2300x700x7300 | 2600x800x7500 | 2500x1000x9000 | 3000x1200x9000 | 3500x1400x9000 | 4200x1800x1400 |
