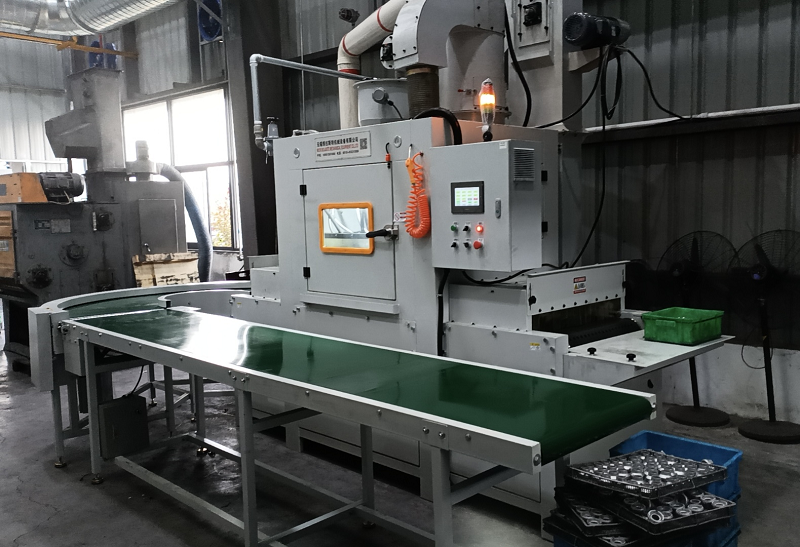

Eight-gun pass-through machine

Suitable products:
1) The surface sandblasting pretreatment of the product before electroplating and spraying processing, so that the surface of the workpiece is absolutely clean, so as to improve the adhesion and anti-corrosion ability of the covering layer; Casting parts, stamping parts, heat treatment parts and other metal workpiece oxidation, residue, dirt, burr and other cleaning and renovation treatment; Surface cleaning of non-metallic products, removal of black spots on the surface of ceramic embryonic parts and restoration of paint patterns.
2) Etching, non-slip processing: metal products, non-metal products surface etching patterns, text and non-slip treatment, (such as: marble, handle non-slip, seal, stone inscription, etc.)
Function description: cleaning and removing impurities; Surface erosion reduction and sand blasting; Enhance adhesion; Increase surface texture
Overall dimensions:
Applicable processing range: width ≤600mm, height ≤200mm, note: the width exceeds 600mm can not be sprayed;
Suitable abrasive: 30-600 mesh abrasive (glass beads; Brown corundum; Silicon carbide; Ceramic sand), etc
Equipment type: wind recovery/mechanical recovery type;
Main machine parameter: ≤ L3000×W1280×3200;
Total equipment parameters: ≤ L3604×W1480×H3200; Gun group swing system parameters: 0.4KW motor, swing frequency ≥60 times /min (adjustable);
Spray gun group parameter :8 HX-B spray guns; Boron carbide nozzle: diameter 8× 20×60;
Workpiece conveying parameters: conveyor power 0.75KW conveying speed 0.6-3m/min adjustable;
Dust box parameters: ≤ L1100×W850×H2200mm(including fan height) 3Kw high pressure centrifugal fan;
Lighting and control appliances: 0.25KW
Daily production: determined by the shape of the customer's workpiece and production efficiency;
Total power of equipment: ≈4KW (excluding power of air compressor equipment)
