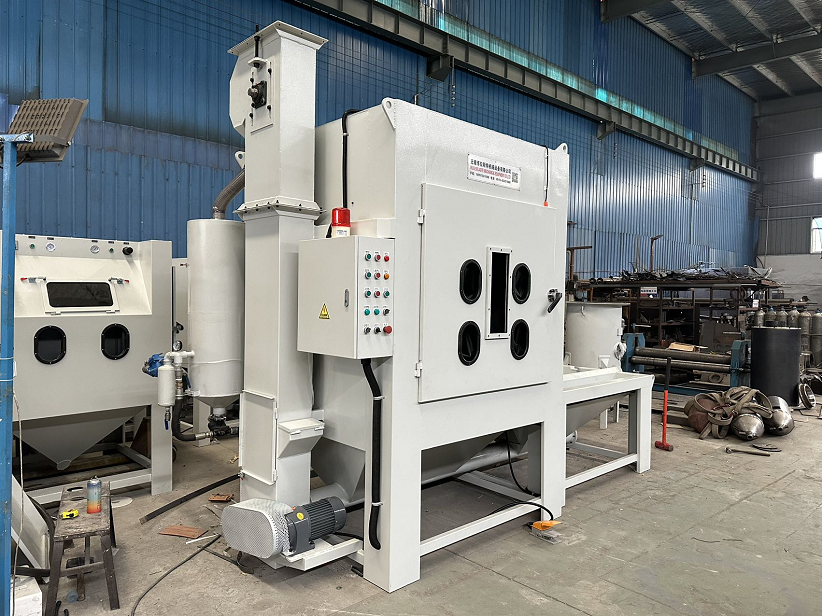

Trolley turntable sandblasting machine

Suitable products: all kinds of round, oval, quad-shaped mold and opposite parts of sandblasting, can remove heat treatment parts, welding parts, castings, forging parts and other surface oxide (rust), residual salt and welding slag
Function description: cleaning and removing impurities; Surface erosion reduction and sand blasting; Enhance adhesion; Increase the surface texture, cleaning quality can reach Sa2.5 level.
Overall dimensions:
Applicable processing range: diameter ≤1400mm, height ≤1300mm; Weight ≤1500KG
Turntable diameter: ø1200mm
Load capacity: ≤1500KG
Shell fixing method: the positioning pile is arranged on the turntable according to the hole of the product base, and the mold is placed on the turntable tooling;
Suitable abrasive: emery; Glass beads; Brown corundum; Silicon carbide; Steel sand, steel pellets, iron sand and other abrasives
Equipment type: mechanical recovery (bucket lift);
Main machine parameter: L1660×W1600×H2400;
Total machine parameters: L3558×W1600×H2650;
Maximum workpiece size: W1480×H1300
Trolley motor 1.1kw (walking speed 0-3M/min variable frequency adjustable)
Number of spray guns -------------- ------- 1 (for users to choose)
A manual pressure sand gun. Boron carbide nozzle: diameter 8× 20×60;
Workpiece sandblasting time: 0-999S adjustable at any time;
Daily production: according to the shape and size of the customer's workpiece;
