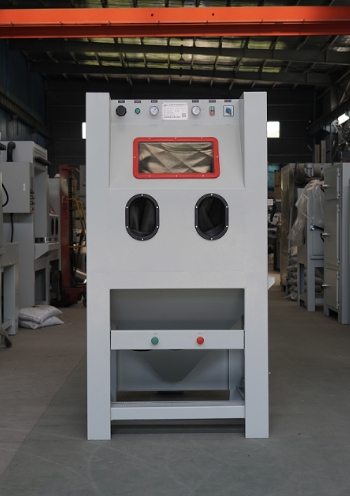

1010SW Liquid Sandblasting Machine

Suitable products:
1) Suitable for liquid sandblasting (shot) processing technology.
2) Suitable for small and medium-sized parts of single, small batch processing.
3) Clean the oxide skin, residual salt and welding slag of heat treatment parts, welding parts, castings, forgings, etc. The cleaning quality can reach Sa3 level.
4) Suitable for cleaning burrs and surface residues of machine additions.
5) Change the surface roughness Ra value of the workpiece.
6) It is suitable for the pretreatment processing before the surface coating and plating of the workpiece, which can obtain the active surface and improve the adhesion of the coating and coating.
7) Suitable for high precision and complex shape parts finishing processing.
8) It is suitable for improving the physical and mechanical properties of the surface of the workpiece, such as changing the surface stress state, improving the lubrication conditions of the matching parts, and reducing the noise during the movement of the matching parts.
9) Can be used for the renovation of old parts.
Function description: cleaning and removing impurities; Surface erosion reduction and sand blasting; Enhance adhesion; Increase surface texture
Overall dimensions:
Overall dimensions 1000 (W) 1500 (H) 1800 (H) mm
Key technical data
Electrical equipment
1) Grinding pump motor: AC380V, 50Hz, 2.2KW, 2840r/min.
2) Lighting device: AC220V, 50Hz, 30W energy-saving lamps.
3) Total power: about 3KW.
Tank grinding fluid volume: about 70 L.
Abrasive:
1) Type: corundum, glass sand abrasives are recommended.
2) Granularity: 24 # ~ 180 #.
3) Dosage: 20 ~ 30kg.
Work table:
1) Diameter: Φ600mm.
2) Maximum uniform weight: 200Kg.
Airbrush:
1) Quantity: 1 manual spray gun.
2) Nozzle diameter: φ8mm.
3) Air nozzle diameter: φ4mm.
4) Working pressure (compressed air gauge pressure after startup) : 0.2 ~ 0.6MPa.
5) Single gun air consumption: about 1M3/min (determined according to compressed air pressure).
Total air consumption:
Approximately 1M3/min (determined by compressed air pressure).
Gas pipe connector size:
φ12mm(straight hose)
Pipe connector size: outer diameter of 13mm(equal to the hose inner diameter).
Weight:
The main package weighs about 200kg
Working conditions:
1) Power supply: three-phase 380V, three-phase four-wire (need to connect the neutral line) 50Hz power supply.
2) Air source: air source pressure 0.8MPa, displacement 1 M3/min[refers to the standard state (20℃, 101.325kPa) air volume flow.
3) Water source: industrial tap water.
