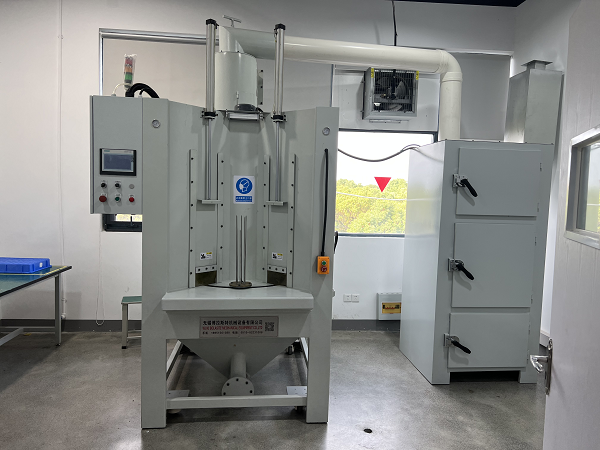

Trolley turntable sandblasting machine

Suitable products:
Product surface pretreatment, cleaning, refurbishing, polishing and other processing: product plating, spraying processing before the surface sandblasting treatment, so that the surface of the workpiece is absolutely clean, so as to improve the adhesion of the covering layer and anti-corrosion ability; Casting parts, stamping parts, heat treatment parts and other metal workpieces to remove oxide skin, residue, dirt, burr and other cleaning and renovation treatment; Surface cleaning of non-metallic products, removal of black spots on the surface of ceramic embryonic parts and restoration of paint patterns. Etching, non-slip processing: metal products, non-metal surface etching pattern, text and non-slip treatment, (such as: marble, handle non-slip, seal, stone inscription, etc.)
Function description: cleaning and removing impurities; Surface erosion reduction and sand blasting; Enhance adhesion; Increase surface texture
Overall dimensions:
Applicable processing range: rotary diameter ≤150mm, total height ≤450mm;
Number of turntables: 4
Number of blasting and handling workers: 1
Suitable abrasive: emery; Glass beads; Brown corundum; Silicon carbide; isoabrasive
Abrasive recovery type: negative pressure siphon type;
Main machine parameter: L1200×W1500×H2910;
Dust collector parameters: L1000×W1300×H2600; 6 filter element, 3Kw high pressure centrifugal fan;
Gun group swing system parameters: 0.75KW motor, swing frequency ≥60 times /min (variable frequency);
Spray gun group parameter :6 HX-B spray guns are divided into two groups, each group of three spray guns for a station sand blasting operation; Boron carbide nozzle: diameter 8× 20×60;
Specify the system parameters; Set up two 12W LED lights, one for observing the sandblasting state in the cabin, and one for bench lighting.
Large rotary motor: 0.75KW, small rotary motor: 0.4KW;
Workpiece sandblasting time: adjustable at any time;
Daily production: determined by the shape of the customer's workpiece and production efficiency;
