The imported control system and high-standard parts have passed strict process and inspection procedures.

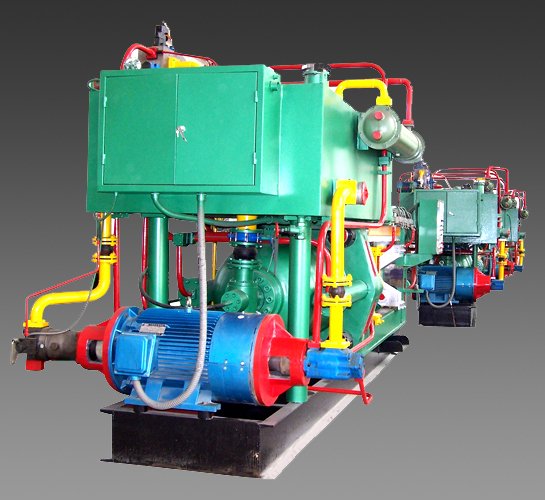

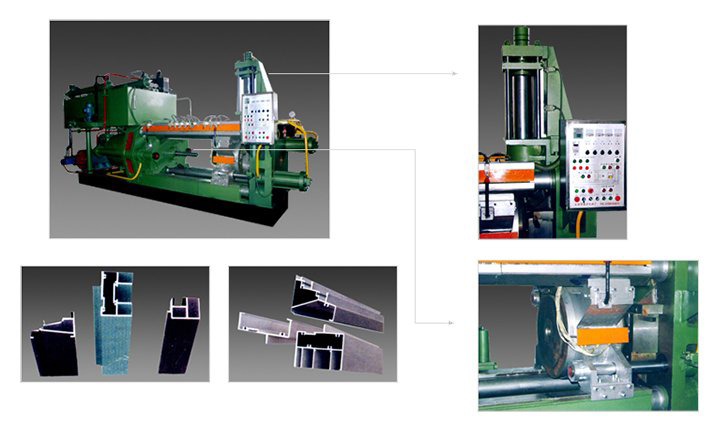

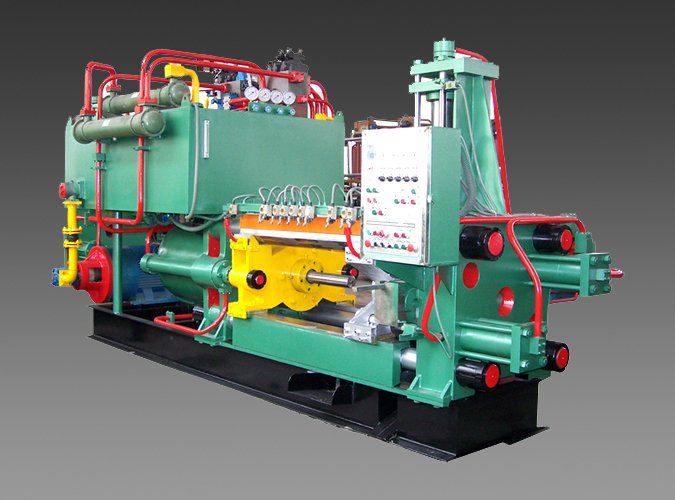

Mainly used for extruding copper, aluminum and its alloys, magnesium and other metals and can produce various architectural profiles, industrial profiles, pipe rods, wire rods and other products.
Light-alloy single-action extrusion press machine: processing capacity 0-12mm/s, weight 9T, size 4.3x1.35x2.4m, power 21Mpa.
Double-action extrusion press machine: extrusion force 3000kN, return force 150kN, extrusion stroke 560mm, fast response and long service life.
Specification
| Model | TXCJ-300 | TXCJ-500 | TXCJ-630 | TXCJ-800 | TXCJ-1000 | TXCJ-1250 | TXCJ-1630 |
Extrusion Force(KN) | 3000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16500 |
Maximum Deviation(mm) | 0.2 | 0.35 | |||||
Return Force(KN) | 150 | 250 | 435 | 435 | 510 | 510 | 600 |
Extrusion Stroke(mm) | 560 | 800 | 1000 | 1120 | 1200 | 1250 | 1500 |
Extrusion Speed(mm / s) | 0-10(A), aluminum / 0-50(B), copper | ||||||
Squeeze Ruler(φxL) | φ65~φ75x300 | φ75~φ95x400 | φ85~φ115x500 | φ95~φ135x550 | φ115~φ145x550 | φ125~φ165x600 | φ170~φ200x750 |
Locking Force(KN) | 160 | 280 | 360 | 420 | 900 | ||
Mold Opening Force(KN) | 220 | 360 | 480 | 610 | 1180 | ||
Shear Force(KN) | 110 | 180 | 210 | 240 | 300 | ||
Hydraulic System Working Pressure(max MPa) | 21 | ||||||
Motor Power A(KW) | 30 | 45 | 55 | 55+30 | 55x2 | 75+55 | 55x3+45 |
Motor Power B(KW) | 75 | 75+55 | 75+55x2 | 75x2+55x2 | 132x2 | 132x3 | 132x4 |
Heating Power(KW) | 15 | 18 | 20 | 24 | 28 | 45 | |
Size(LxBxH) | 4.5x1.5x3.0 | 5.5x1.8x3.0 | 6.5x2.2x3.5 | 8.5x3.0x8.5 | 9.0x3.5x3.8 | 11.0x4.2x5 | |
Weight(t) | 10 | 13 | 24 | 42 | 52 | 58 | 95 |
