UL2464 electronic wire

Application: Mainly used in the internal connection of electrical equipment.
Product standard: UL758, UL2556, UL1581

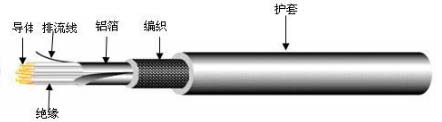

Cable structure and technical characteristics:
1) Single or multi-strand copper conductor, in accordance with UL and ASTM regulations
2)PVC insulation layer
3) Braided shield (optional)
4)PVC sheath layer
Rated voltage: 300V
Temperature range: -20℃ to +80℃
Flame retardant: VW-1, FT1
