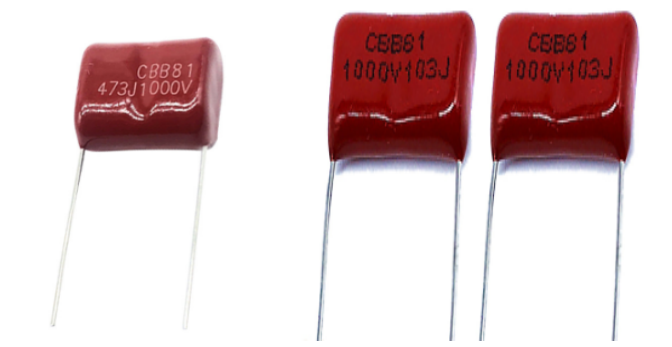

High Voltage Metallized Polypropylene Film/Foil Capacitor (Dipped)

■Typical Applications
Horizontal resonance circuits of large screen monitor
Suitable for high pulse and high current loading circuit
and electronic ballast
■Features
Metalized polypropylene film/foil, Wound construction
Low loss and small inherent temperature rise
Negative temperature cofficient of capacitance
Flame retardant epoxy resin powder coating (UL94V-0)
