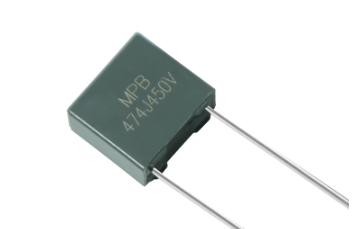

Metallized Polypropylene Film Capacitor (Boxed)

■Typical Applications
Widely used in high frequency, DC, AC and pulse circuits
Suitable for the situation where applies high frequency
and high current pulse.
■Features
Metllized polypropylene film with radial leads of tinned
wire. The capacitor is encapsulated in a self-extinguishing
solvent resistant plastic case with thermosetting resin
material meeting UL 94 V-0 requirements.
