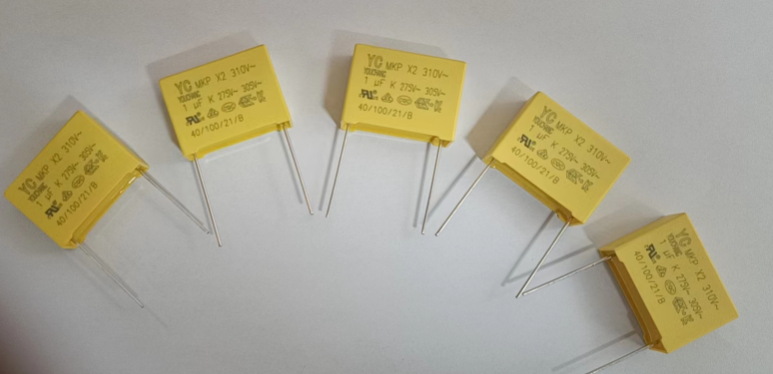

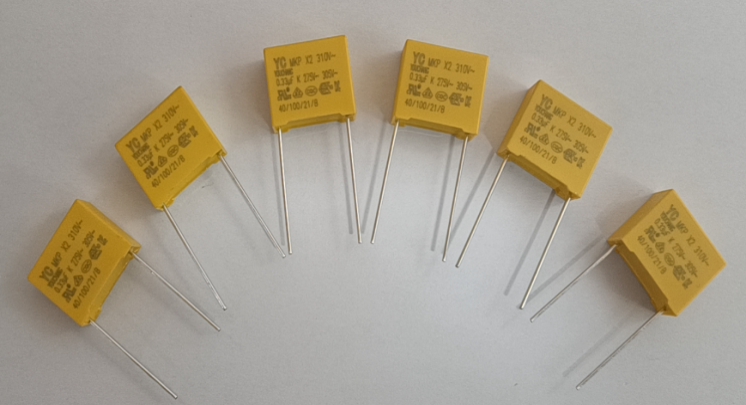

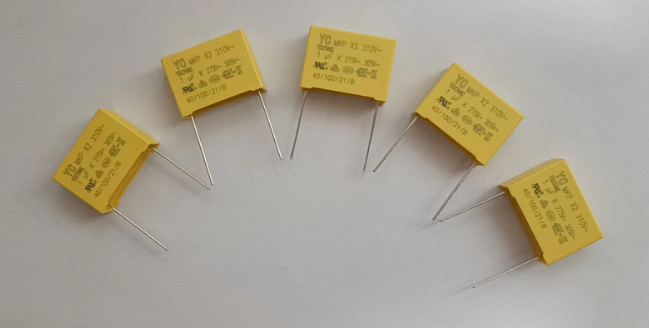

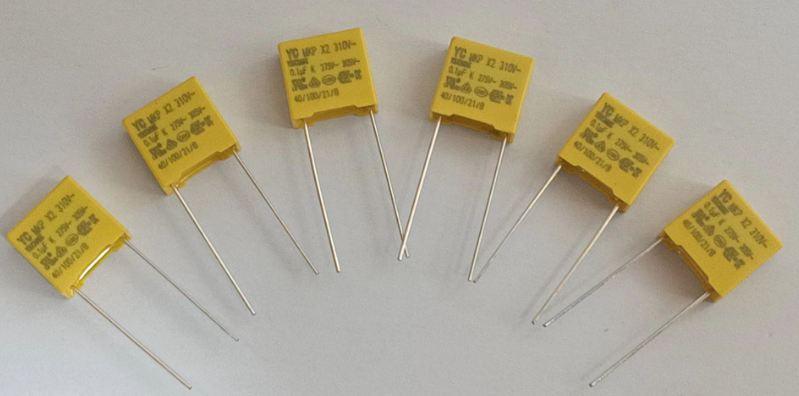

EMI Suppression Capacitor, Class X2

■Typical Applications
For worldwide use in electromagnetic interference (EMI)
suppression in across-the-line applications requiring X2
safety dlassification. Intended for use in situations where
capacitor failure would not result in exposure to electric
shock. Not for use in "series with mains" type applications.
■Features
Metallized polypropylene film with radial leads of tinned
wire. The capacitor is encapsulated in a self-extinguishing
solvent resistant plastic case with thermosetting resin
material meeting UL 94 V-0 requirements.
