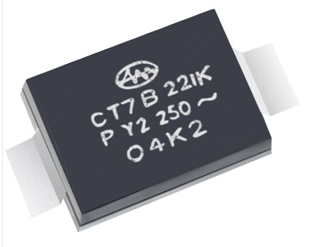

Epoxy Molding SMD Y2-CAP

Trait
-We design capacitors much more compact in thickness than traditional radial Type, having reduced the thickness to 2.5mm height.
- Operating temperature range -40~+125C
-Dielectric strength: AC2500V

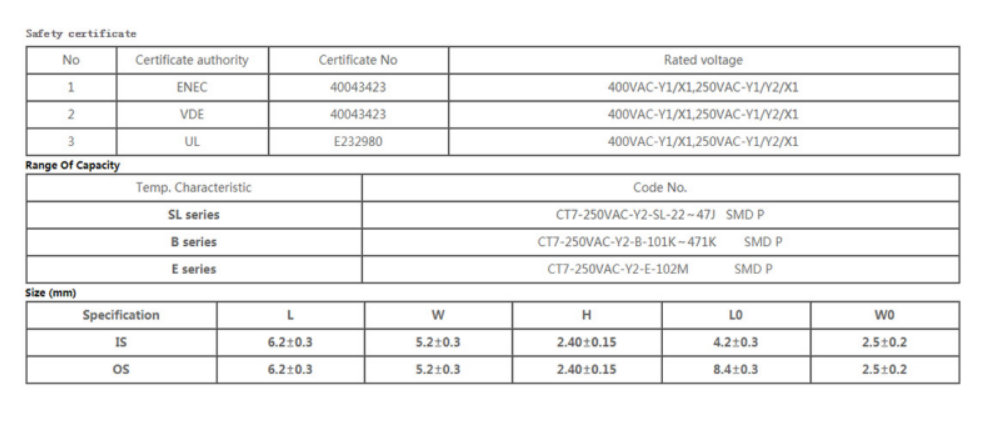

- Class X1/Y2 capacitors certified by ULVDE/ENEC.
- Coated with flame -retardant epoxy resin (conforming to UL94V-0 standard).
- Taping available for automatic SMT reflow.
- AC250V Rated Voltage item are available.
-This one is MSL 3 product.
Application Area
-ldeal for use as XN capacitors for AC line filters and primary-secondary coupling on switching power supplies and AC adapters.
-ldeal for use on D-A isolation and noise absorption for DAA modems without transformers.
