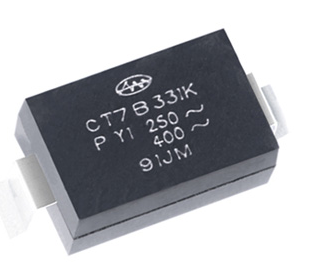

Epoxy Molding SMD Y1-CAP

- We design capacitors much more compact in thickness than traditional radial Type, having reduced the thickness to 2.5mm height.
-Operating temperature range -40~+125C
- Dielectric strength: AC4000V

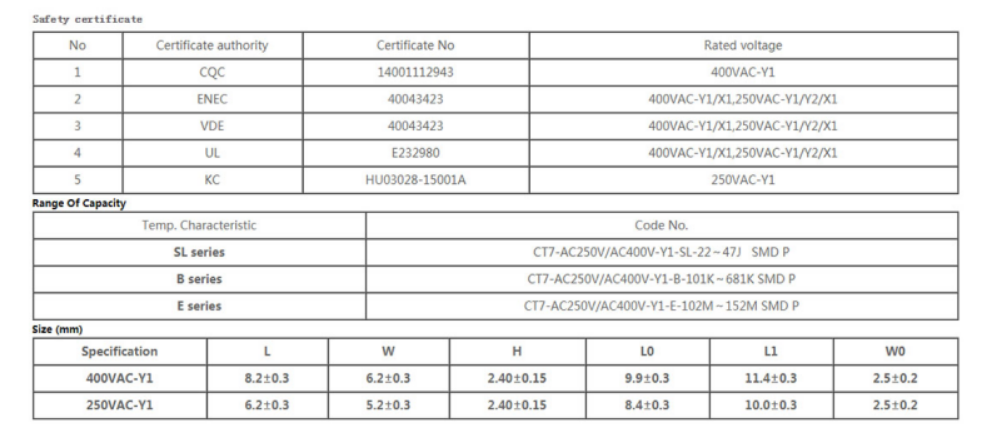

- Class X1/Y1 capacitors certified by UL/CQCNVDE/ENEC/KC.
- Coated with flame- retardant epoxy resin (conforming to UL94V-0 standard).
- Taping available for automatic SMT reflow.
- AC250V & AC400V Rated Voltage item are available.
-This one is MSL 3 product.
Application Area
- Ideal for use as XN capacitors for AC line filters and primary-secondary coupling on switching power supplies and AC adapters.
- ldeal for use on D-A isolation and noise absorption for DAA modems without transformers.
