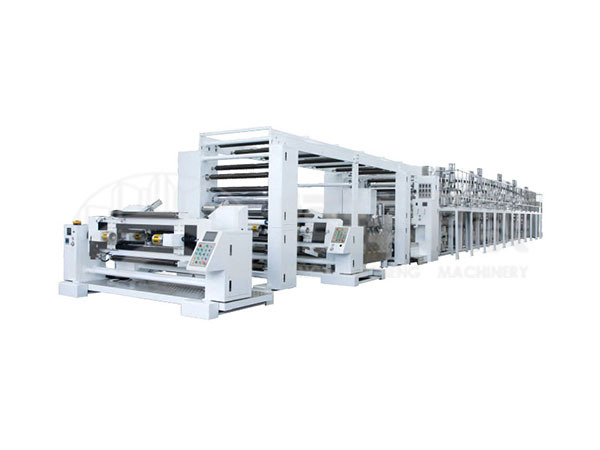

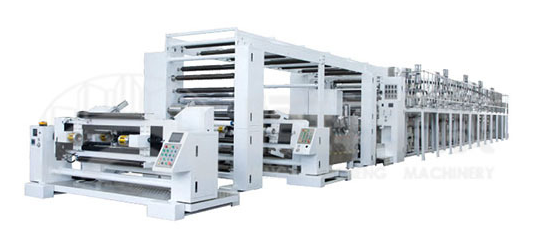

Double-sided ceramic /PVDF diaphragm coater in one
Specification
Applicable coating system: ceramic, Boehmite, PVDF
Coating mode: micro - concave coating, disc - type spraying, regular spot coating
Air ceiling bellows, intelligent temperature control
Double station non-stop automatic rewinding and rewinding
Machine type | Double-sided ceramic /PVDF diaphragm coater in one |
Adaptive substrate | PE/PP |
Substrate width | 600-1300mm，customizable |
Mechanical speed | 120m/min-150m/min，customizable |
Unwinding diameter | Max500，customizable |
Winding diameter | Max500，customizable |
Production
