Specification

Feature

1.Compared with other conveyors, it can transport materials in the vertical direction and occupies a smaller area;

2.At the same lifting height, the conveying route is greatly shortened, making the arrangement of the system compact;

3.It can work in a fully enclosed enclosure with good sealing performance, thus reducing the pollution to the environment；

4.There are many classification methods for bucket conveyors, for example, they can be divided into vertical and inclined ones according to the material transportation method;

5.According to the form of traction components, it can be divided into belt type and chain type;

6.According to the way of material unloading from the hopper, it can be divided into centrifugal, gravity and mixed;

7.According to the arrangement of hoppers on traction members, they can be divided into sparsely arranged hoppers and densely arranged hoppers. In order to ensure that the bucket conveyor has normal working conditions, attention must be paid to the correct selection of the shape and size of the hopper, the speed of movement, the size of the roller or chain wheel, and the size of the head and base suitable for the physical properties of the material and the working conditions of the conveyor.

Working principle

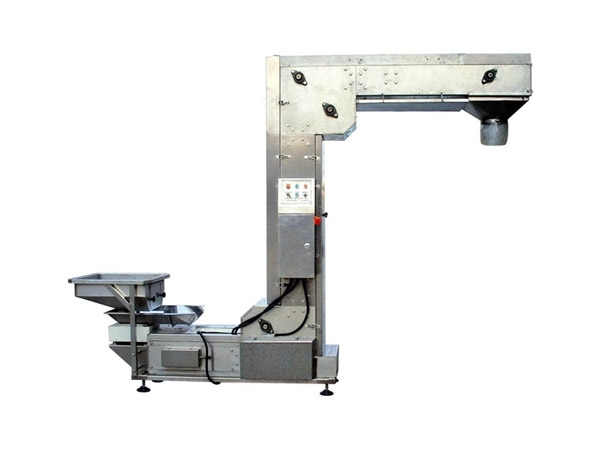

The hopper scoops up the materials from the storage below. As the conveyor belt or chain is lifted to the top, it will bypass the top wheel and turn down. The bucket conveyor will dump the materials into the receiving tank. The drive belt of belt driven bucket conveyor generally adopts rubber belt, which is installed on the lower or upper drive drum and the upper and lower steering drum. Chain driven bucket conveyors are generally equipped with two parallel drive chains, with a pair of drive sprockets at the top or bottom and a pair of reversing sprockets at the bottom or top. The bucket conveyor is generally equipped with a casing to prevent dust flying in the bucket conveyor.
