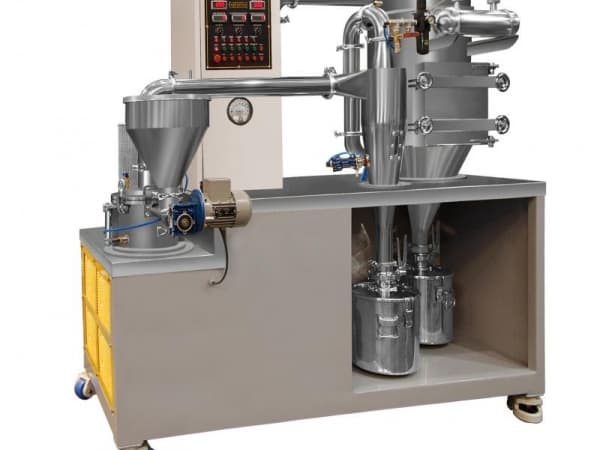

It is composed of main engine, auxiliary engine and electric control. It is compact in design and reasonable in structure. It is of air separation type without screen or mesh The machine is equipped with a grading structure, which can enable crushing and grading to be completed at one time. Negative pressure conveying can continuously discharge the heat energy source generated in the cavity during crushing operation, so it is also suitable for crushing heat sensitive materials. This machine is suitable for wide range, continuous production process, and adjustable discharge particle size; Capable of crushing and grad- ing various materials such as chemicals, food, drugs, cosmetics, dyes, resins, shells, etc.
Specification
| Speciication and model | WFJ-15 | WFJ-18 | WFJ-36 | WFJ-60 |
| Production capacity(kg/h) | 10-200 | 20-450 | 60-1000 | 1000-1500 |
| Feed particle size(mm) | <10 | <12 | <15 | <18 |
| Discharge particle size (mesh) | 80-320 | 80-450 | 80-450 | 80-450 |
| Total power(kw) | 13.7 | 19.07 | 38.85 | 65.2 |
| Main speed(rpm) | 4500 | 4480 | 4000 | 4000 |
| Overall dimension (L × W × H)(mm) | 5410×1660×2500 | 5500×1800×3100 | 9000×2200×4000 | 9000×2700×5280 |
Feature
It is composed of main engine, auxiliary engine and electric control. It is compact in design and reasonable in structure. It is of air separation type without screen or mesh The machine is equipped with a grading structure, which can enable crushing and grading to be completed at one time. Negative pressure conveying can continuously discharge the heat energy source generated in the cavity during crushing operation, so it is also suitable for crushing heat sensitive materials. This machine is suitable for wide range, continuous production process, and adjustable discharge particle size; Capable of crushing and grad- ing various materials such as chemicals, food, drugs, cosmetics, dyes, resins, shells, etc.

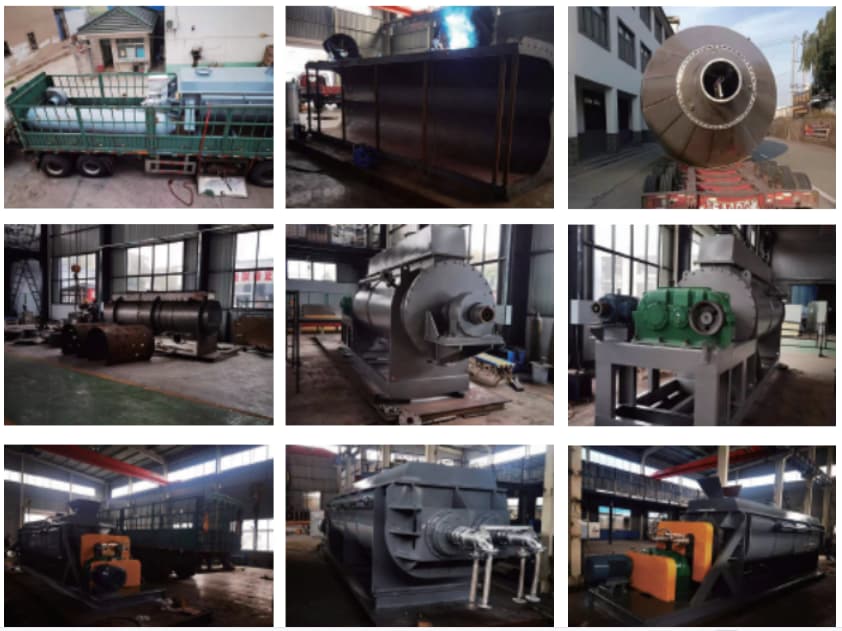

Production
