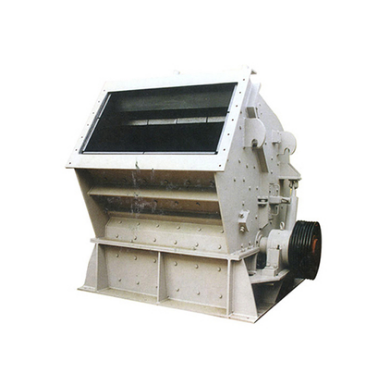

This series of products is suitable for crushing medium and hard materials, such as limestone crushing in cement plants,
It has the advantages of large production capacity and small discharge particle size.
Specification
| 型号 Type | 规格(mm ) Spec | 进口料尺寸(mm) Feed opening | 给料边长(mm) Max.Feeding edge | 生产能力(t/h) Capacity | 功率(k) Power | 重量(不包含电机Kg)Weight (excluding elec.motmr) |
| PF-0607 Ⅱ | φ644×740 | 320×770 | 100 | 5-15 | 30 | 4000 |
| PF-0807 Ⅱ | 中850×700 | 400×730 | 300 | 10-25 | 45 | 8000 |
| PF-H-1007Ⅱ | 中1000×700 | 400×730 | 300 | 25-45 | 55-75 | 9232 |
| PF-A-1010Ⅱ | φ1000×1050 | 400×1080 | 350 | 40-60 | 75-90 | 12000 |
| PF-B-1210 Ⅱ | 中1250×1050 | 400×1080 | 350 | 60-100 | 110-160 | 13740 |
| PF-C-1214 Ⅱ | 中1250×1400 | 400×1430 | 350 | 90-150 | 132-180 | 18000 |
| PF-1013 Ⅱ | 中1000×1300 | 650×1350 | 400 | 80-120 | 110 | 12000 |
| PF-1315 Ⅱ | 中1320×1500 | 860×1520 | 500 | 160-200 | 250 | 19000 |
| PF-1320 Ⅱ | 中1320×2000 | 860×2030 | 500 | 250-300 | 375 | 24000 |

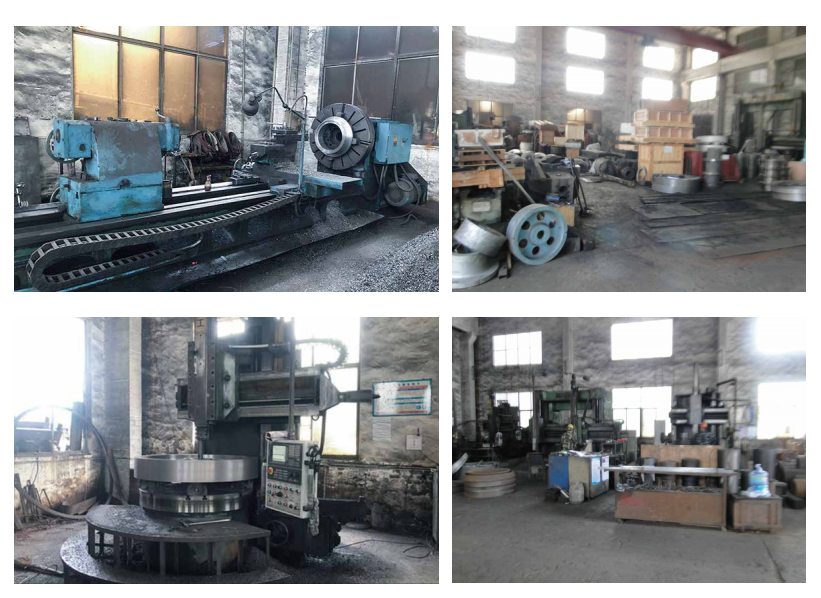

Production
