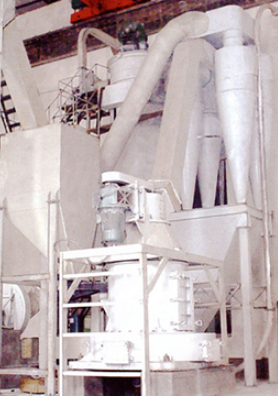

Superfine pendulum mill

The pendulum superfine grinding machine includes the mainframe, which is equipped with the mainframe motor.
The main frame is equipped with a grinding ring seat, which is installed on the inside of the grinding ring seat. The grinding ring seat is equipped with a transmission assembly, which is connected with the main motor. The transmission assembly is equipped with a quincunx frame, which is equipped with at least three hanging roller assemblies. Each hanging roller assembly is connected with a clearance adjustment device. The grinding ring seat is also equipped with an air inlet device, which is located on the upper part of the grinding ring. A cover cylinder is installed above the grinding ring seat, and a blade is installed on the transmission assembly. The transmission assembly of this swing ultra-fine mill drives the plum blossom frame to rotate under the drive of the motor, so that the grinding pressure between the grinding roller and the grinding ring is always large enough to adapt to a variety of raw materials. Due to the clearance adjustment device, there is a clearance of 0.01-3 mm between the grinding roller and the grinding ring, which can make the mill free from vibration and noise during operation. It can also reduce the contact between materials and rolled parts and improve the product quality.
