Using enameled copper wire, not enamelled aluminium wire, so the motor is more reliable and long lifetime.
Low noise, long lifetime.
More stable and safer when driving.
OEM & ODM service.
Sample available.
Description
| Torque | 35kg.cm | Speed (RPM) | 7-1280 |
| Protective Function | Completely closed | Brush Shape | Leaf brush system |
| Rotation | CCW / CW reversible | Construction | Permanent magnet |
| High Light | 24V high power DC gear motor, 520 high power DC gear motor, 7mm brushed motor | ||
Specification
| Name | DC geared motor |
| Voltage | 12V / 24V |
| Power | 1W |
| No-load Speed | 7-1600rpm |
| Electric Current | 350mA |
| Product Shaft Diameter | 6mm d-cut (can be customise) |
| Product Shaft Length | 15mm |
| Maximum Torque | 21kg.cm |
| Weight | 170g(approx) |
| Whether To Adjust The Speed | yes |
| Whether Forward Or Reverse | yes |
Introduction
In this motor, a permanent magnetic field can be generated with the permanent magnets which communicate by the perpendicular field stimulated by the flow of currents within the rotor windings; therefore a mechanical torque can be created.
When the rotor rotates in response to the created torque, then the position among the stator as well as rotor fields can be reduced, and the torque would be reversed in a 90-degree rotation. To maintain the torque performing on the rotor, PMDC motors include a commutator, set to the rotor shaft.

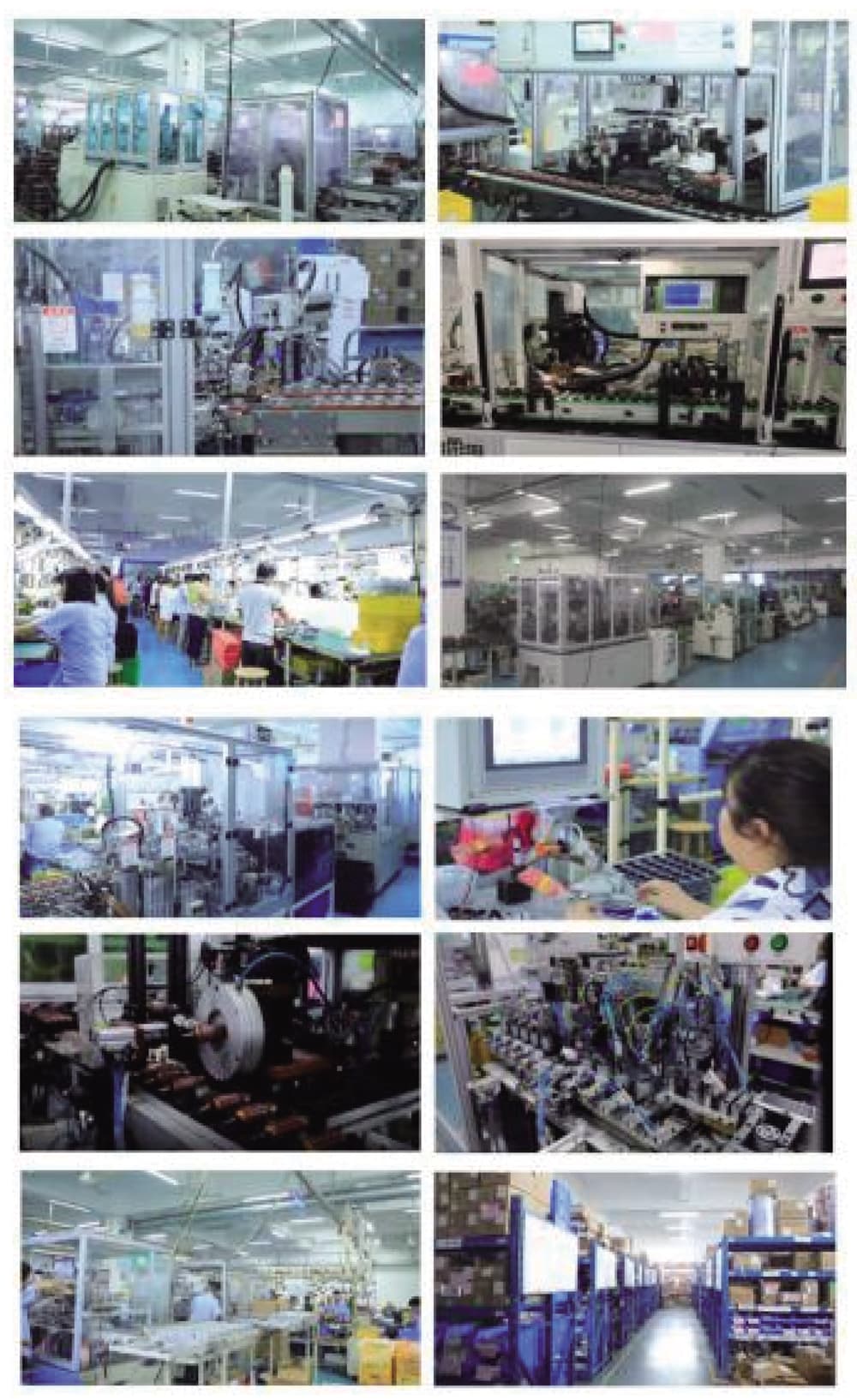

Production
