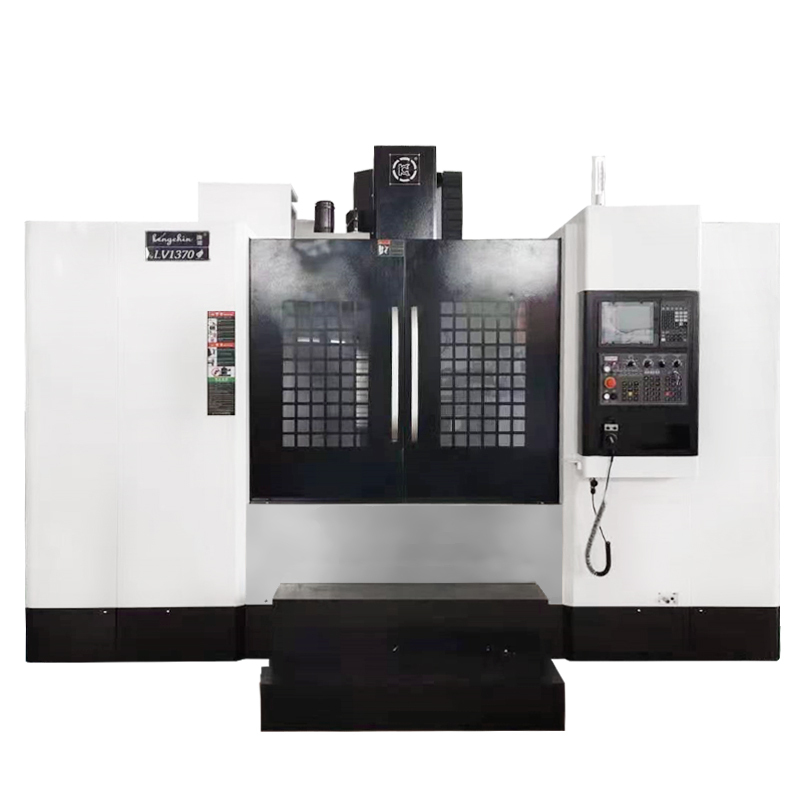

Kengchin Machinery high-speed machining center is a cost-effective, high-efficiency vertical machining center for precision hardware parts and products. The machine has the advantages of strong structural rigidity, stable accuracy, low failure rate and good reliability, and precision products and parts processing tools.
Applicable industry:
Rigid machine tools should have low failure rate and good reliability in production occasions, especially suitable for precision products, precision hardware parts and other processing.
Specification
| project | unit | LV1370 | LV1060 |
| working desk size | mm | 1500*700 | 1100*600 |
| Workbench load bearing | kg | 1000 | 800 |
| Workbench T-slot dimensions | mm | 5*22*135 | 5*18*100 |
| The nose of the spindle is away from the work surface | mm | 170-920 | 150-770 |
| Spindle revolutions | rpm | 8000/12000 | 8000/12000 |
| Spindle taper hole and transmission mode | - | BT40-direct connection | BT40-direct connection |
| X/Y/Z wire gauge specifications | mm | 45*45*55 | 45*55*55 |
| X/Y/Z screw specifications | mm | 50*10 | 40*12 |
| Tool magazine and tool exchange method | - | 24#-knife arm type | 24#-knife arm type |
| Maximum tool diameter available in tool magazine | mm | 75 | 75 |
| Maximum load capacity of tool magazine tools | kg | 8 | 82100*2500*2600 |
| Machine size | mm | 3700*2920*2800 | 6600 |
| Machine weight | kg | 10500 | 6600 |
| System Configuration | - | Mitsubishi-M80B | Mitsubishi-M80B |
| Spindle motor specifications | kw | November 15 | 11 |
| X/Y/Z axis motor specifications | kw | 3.0/3.0/3.5 | 3.0/3.0/3.0 |
| X/Y/Z fast movement | mm/min | 20000*20000*18000 | 24000*24000*18000 |
| X/Y/Z cutting feed | mm/min | 1-10000 | 1-10000 |
| X/Y/Z stroke | mm | 1300*700*600 | 1000*600*600 |
| X/Y/Z axis positioning accuracy | mm | ±0.005/300 | ±0.005/300 |
| X/Y/Z axis reset accuracy | mm | ±0.003/300 | ±0.003/300 |
