Heating is divided into three ways: steam, hot water and heat transfer oil;
When ordering, please indicate the temperature that the material can withstand or the operating temperature of the dryer, so that the factory can choose or provide a heat source for you;
When drying viscous materials, our factory will specially design a "copy board" structure in the tank;
The accessories involved in the vacuum drying system can be provided and installed by our factory, please specify in the order;
Our factory can provide design, manufacture and installation according to the special requirements of users;
The overall equipment package will be charged as required.
Specification
| Tank Volume | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 |
Charging Volume (L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤500 | ≤750 | ≤1000 | ≤1750 |
Heating Area (m2) | 1.16 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 11.2 |
Speed (rpm) | 4-6 | |||||||
Motor Power (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 | 3 | 4 | 5.5 |
Footprint Length x Width (mm) | 2160×800 | 2260×800 | 2350×800 | 2560×1000 | 2860×1300 | 3060×1300 | 3260×1400 | 3760×1800 |
Swing Height (mm) | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 |
Design Pressure in Tank (MPa) | -0.25 | |||||||
Jacket Design Pressure (MPa) | ≤0.3 | |||||||
| Operating Temperature (oC) | inside the tank≤85 Jacket≤140 | |||||||
| When Using a Condenser | ||||||||
| Vacuum Pump | 2X-15A | 2X-15A | 2X-30A | 2X-30A | 2X-70A | JZJX300-8 | JZJX300-4 | JZJX600-8 |
| Model Power | 2KW | 2KW | 3KW | 3KW | 5.5KW | 7KW | 9.5KW | 11KW |
| Without Condenser | ||||||||
| Vacuum Pump | SK-0.4 | SK-0.8 | SK-0.8 | SK-2.7B | SK-2.7B | SK-3 | SK-6 | SK-6 |
| Model Power | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW | 5.5KW | 11KW | 11KW |
| Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 |
| Note: For materials with large volume changes before and after drying, the charging coefficient can be appropriately increased or decreased. | ||||||||

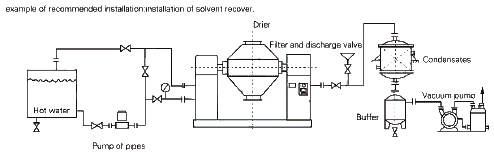

Installation Diagram
