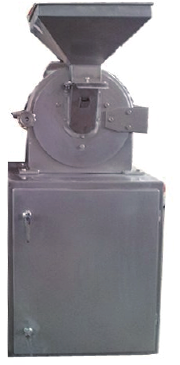

This machine is suitable for material crushing in pharmaceutical, chemical, food and other industries.
Specification
| Model | 20B | 30B | 40B |
Production Capacity (kg/h) | 60-150 | 100-300 | 160-800 |
Spindle Speed (r.p.m) | 4500 | 3800 | 3400 |
Feed Particle Size (mm) | 6 | 10 | 12 |
| Finished Product Fineness (mesh) | 60-120 | 60-120 | 60-120 |
| Motor Power (kw) | 4 | 5.5 | 11 |
Principle
This machine utilizes the relative movement between the movable toothed disc and the fixed toothed disc to make the crushed material get crushed by tooth impact, friction and impact between materials.
And 20b, 30b, 40b are all designed according to the "GMP" standard, the whole machine is all made of stainless steel, and the 30b and 40b crushing chambers are equipped with water cooling jackets.
The machine is simple in structure, high in single output and easy to clean. It is the most ideal crushing equipment at present.
