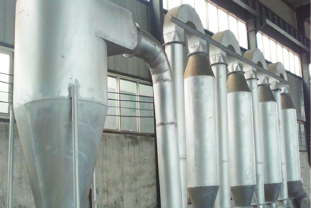

QG series pulse air dryer is a kind of large-scale drying equipment. It adopts the principle of instant drying and uses the rapid movement of the heat-carrying air to drive the wet material and suspend the wet material in the hot air, which strengthens the entire drying process.
Improve the rate of heat and mass transfer, the unbound water can be almost completely removed from the air-dried materials, and the dried materials will not be deteriorated, and the output can be significantly improved compared with the general dryer drying, users can in a short period of time. achieve higher economic benefits.
Specification
| Model | QG50 | QG100 | QG200 | QG250 | QG500 | QG1000 | QG1500 |
Evaporated Water (kg/h) | 50 | 100 | 200 | 250 | 500 | 1500 | 1500 |
Installed Power (kw) | 7 | 13 | 21 | 24 | 43 | 100 | 150 |
Floor Area (m2) | 20 | 32 | 40 | 64 | 96 | 120 | 200 |
| Height (m) | 14 | 14 | 15 | 15 | 18 | 18 | 20 |
| Note: the brackets in the column of installed power are the power when equipped with bag filter. | |||||||
| Note: the above parameters are for reference only, the drying strength is related to the material characteristics, operating temperature and other factors. | |||||||
Feature
1. The drying intensity is high, the equipment investment is low, the processing capacity of the airflow drying equipment is the largest evaporation water capacity from 50kg/h-2000kg/h, and the equipment volume is small, and the investment is low, which is unmatched by other drying equipment.
2. High degree of automation and good product quality. The drying time is very short (only 0.5-2 seconds) in the pipeline.
Therefore, automation can be realized. The product does not contact with the outside world, and the pollution is small and the quality is good.
3. Complete set of equipment supply, free choice of heat source The basic type consists of air filter, heater, feeder, drying pipe, fan, and cyclone separator.
Users can add dust collectors or other auxiliary equipment as needed.
4. The heating method chooses the upper airflow drying equipment to have greater adaptability. Users can choose steam, electricity, heat-conducting oil and hot blast stove heating according to the conditions of the region.
At the same time, according to the heat-resistant temperature (or hot air temperature) of the material, they can choose when the temperature is ≤150 °C. The steam heating can be used when the temperature is ≤200 °C. Electric heating (or steam heating) Heating? Electric compensation or heat transfer oil heating) ≤ 300 ℃ when coal-fired hot blast stove ≤ 600 ℃. Oil hot air stove.
Short drying time, suitable for heat-sensitive materials, the finished product is not in contact with the outside world, no pollution, and good quality.

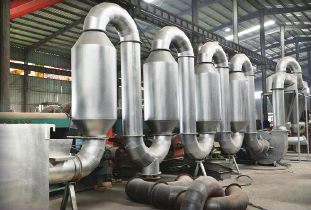

Production
