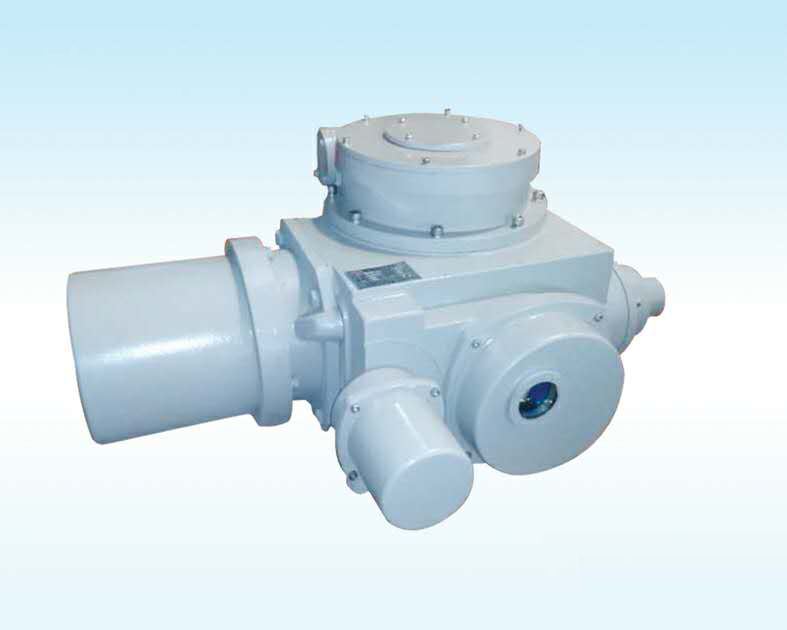

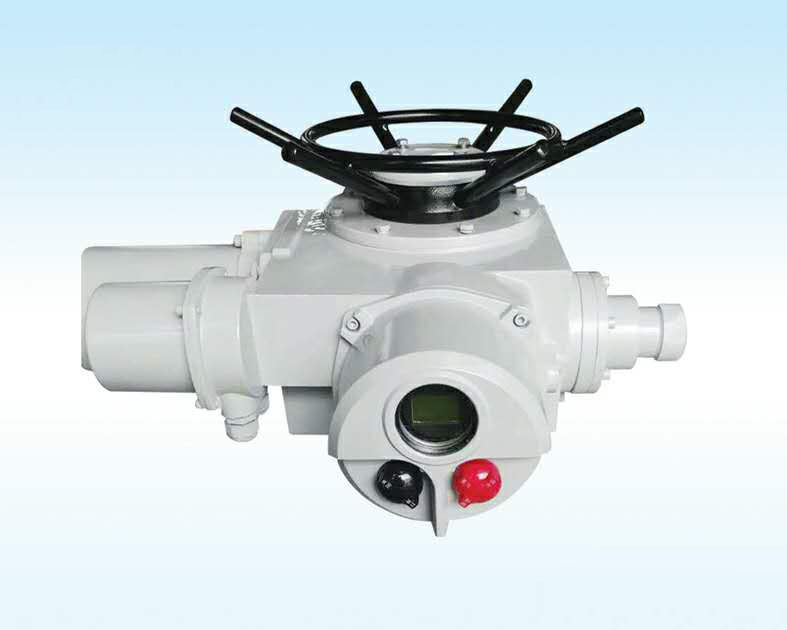

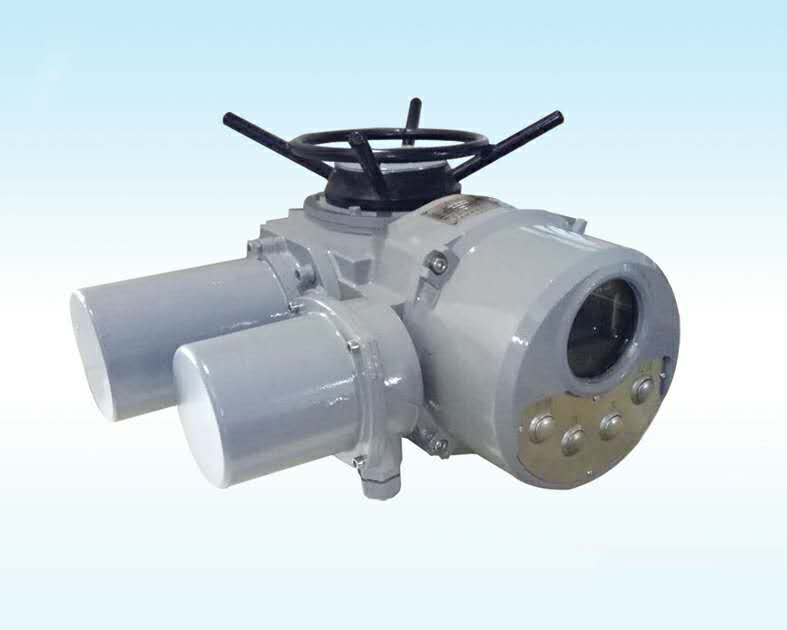

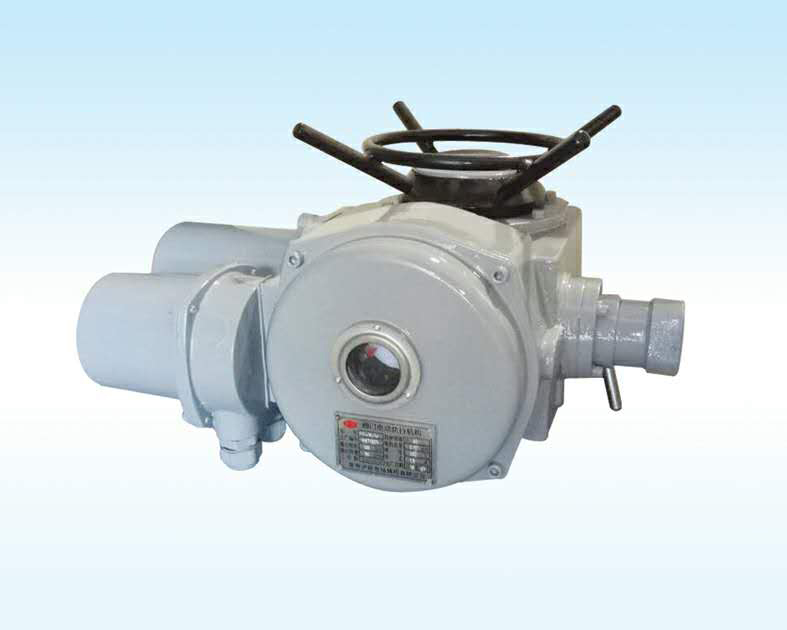

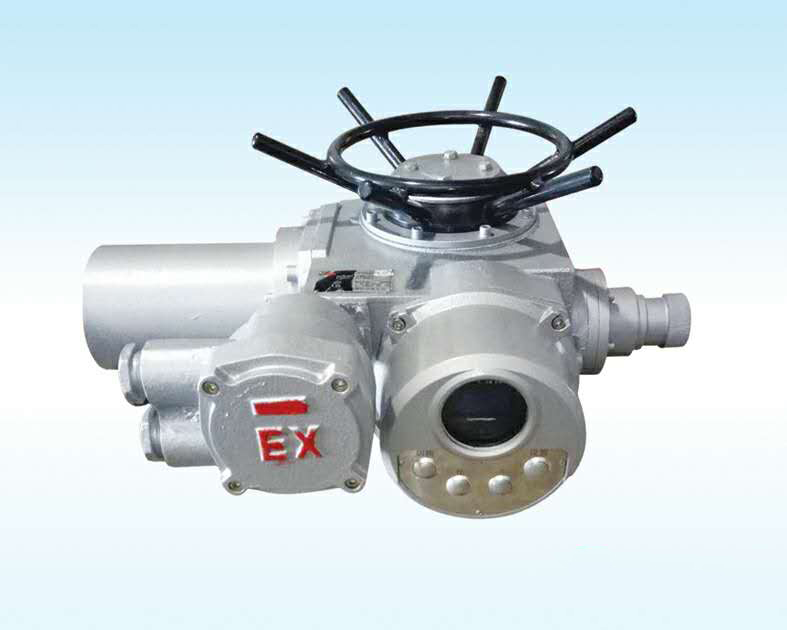

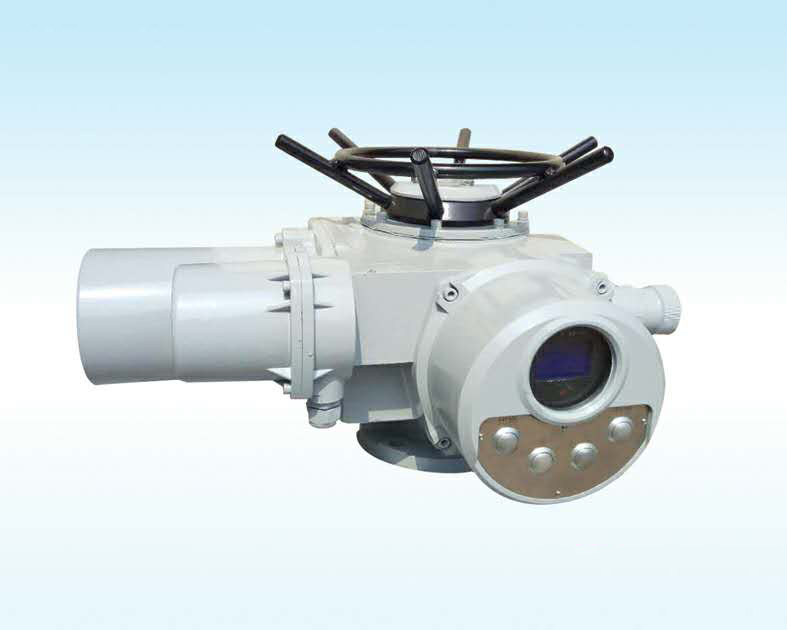

Including ordinary type, intelligent type, intelligent explosion-proof type.
Other rotating speeds can be provided according to user requirements: 12/18/24/30/36/42/48/60 (r/min).
2When the product provides a four layer counter, the maximum number of turns is the number of turns in Table 1 × ten.
OEM & ODM service.
Sample available.
MOQ: 10
Specification
| Model specification | Nominal torque (N · m) | Nominal thrust (KN) | Maximum valve stem diameter (mm) | Maximum number of revolutions (turns) | Manual speed ratio | Output speed (r/min) | Motor power (KW) | Reference weight (Kg) |
| Z5 | 50 | 20 | 28 | 60 | 1:01 | 12 | 0.12 | 28 |
| Z10 | 100 | 40 | 24 / 36 | 0.25 / 0.37 | 45 | |||
| Z15 | 150 | 0.37 / 0.55 | 50 | |||||
| Z20 | 200 | 100 | 40 | 18 / 24 | 55 | |||
| Z30 | 300 | 0.55 / 0.75 | 58 | |||||
| Z45 | 450 | 150 | 48 | 120 | 1:01(20:1) | 24 / 36 | 1.1 / 1.5 | 110 |
| Z60 | 600 | 1.5 / 2.2 | 120 | |||||
| Z90 | 900 | 200 | 60 | 1:01(25:1) | 2.2 / 3 | 139 | ||
| Z120 | 1200 | 3 / 4 | 142 | |||||
| Z180 | 1800 | 325 | 70 | 150 | 22.5:1 | 18 / 24 | 4 / 5.5 | 250 |
| Z250 | 2500 | 5.5 / 7.5 | 255 | |||||
| Z350 | 3500 | 700 | 80 | 20:01 | 7.5 / 10 | 330 | ||
| Z500 | 5000 | 10 / 15 | 350 |

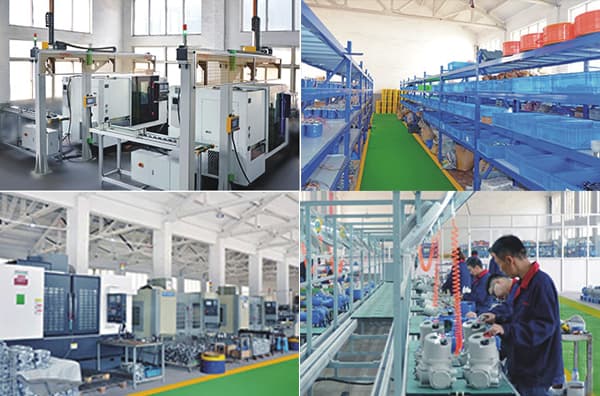

Production
