Power supply: three-phase 380V (50Hz).
Ambient temperature: - 20~+60 ℃.
Relative humidity: ≤ 95% (at 25 ℃).
Protection type: outdoor type, used in places without .
flammable, explosive and corrosive media.
Protection grade: IP55.
Working system: 10 minutes.
OEM & ODM service.
Sample available.
MOQ: 10
Specification
| Model specification | Output torque (N · m) | Output shaft revolutions (r) | Maximum valve stem diameter (mm) | Manual speed ratio (i) | Output speed (r/min) | Motor power (KW) | Rated current (A) | Reference weight (Kg) |
| DZW5 | 50 | 50 | 28 | 1:01 | 18 | 0.12 | 0.7 | 28 |
| DZW10 | 100 | 24 / 36 | 0.25 / 0.37 | 1.3 / 1.6 | 61 | |||
| DZW15 | 150 | 0.37 / 0.55 | 1.6 / 2.4 | 63 | ||||
| DZW20 | 200 | 40 | 0.55 / 0.75 | 2.4 / 3 | ||||
| DZW20(I) | 28 | |||||||
| DZW30 | 300 | 40 | 24 | 0.75 | 3 | 65 | ||
| DZW30(I) | 28 | |||||||
| DZW45 | 450 | 120 | 48 | 24 / 36 | 1.1 / 1.5 | 3.4 / 4.5 | 110 | |
| DZW60 | 600 | 1.5 / 2.2 | 4.5 / 6.5 | 112 | ||||
| DZW90 | 900 | 60 | 2.2 / 3 | 6.5 / 9 | 139 | |||
| DZW90(I) | 48 | |||||||
| DZW120 | 1200 | 60 | 24 | 3 | 9 | 142 | ||
| DZW120(I) | 48 | |||||||
| DZW180 | 1800 | 150 | 70 | 25:01:00 | 24 / 36 | 4 / 5.5 | 11 / 14 | 261 |

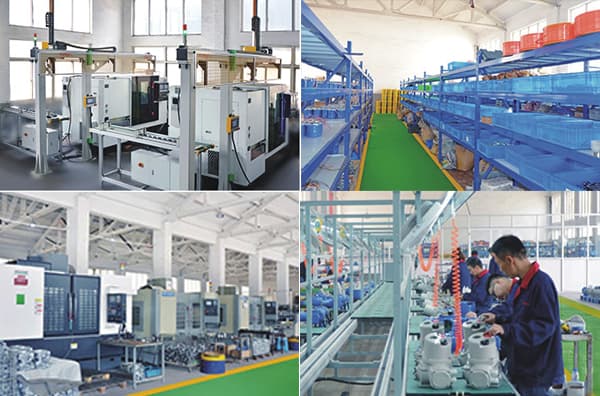

Production
