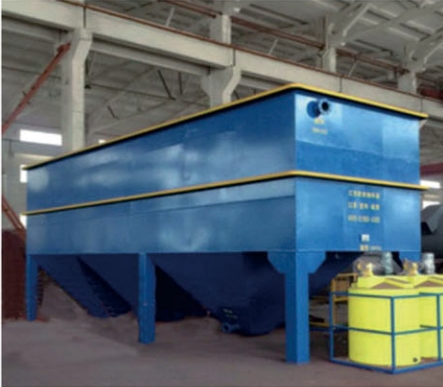

IBS type inclined plate sedimentation tank

IBS type inclined plate sedimentation tank is an efficient combined sedimentation tank designed according to shallow sedimentation theory. Also known as shallow sedimentation tank.
A number of dense inclined plates are set in the settling area to precipitate the suspended impurities in the water in the inclined plate, and the water flows upward along the inclined plate, and the separated mud and slag follow the action of gravity
The inclined plate slides down to the bottom of the pool and is discharged in a concentrated fashion. This kind of pond can increase the precipitation efficiency by 50 to 60%, and the processing capacity can be increased by 3 to 5 times in the same area.
